Air And Vapor Barrier Membrane Redzone

Resisto

Air And Vapor Barrier Membrane Redzone

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Vapor Retarder (Class I) Vapor Retarder (Class I)

Fully Adhering Fully Adhering

Bitumen Bitumen

Ceiling, Sloped Roof, Wall Ceiling, Sloped Roof, Wall

Concrete Concrete

Design Options

Product Description

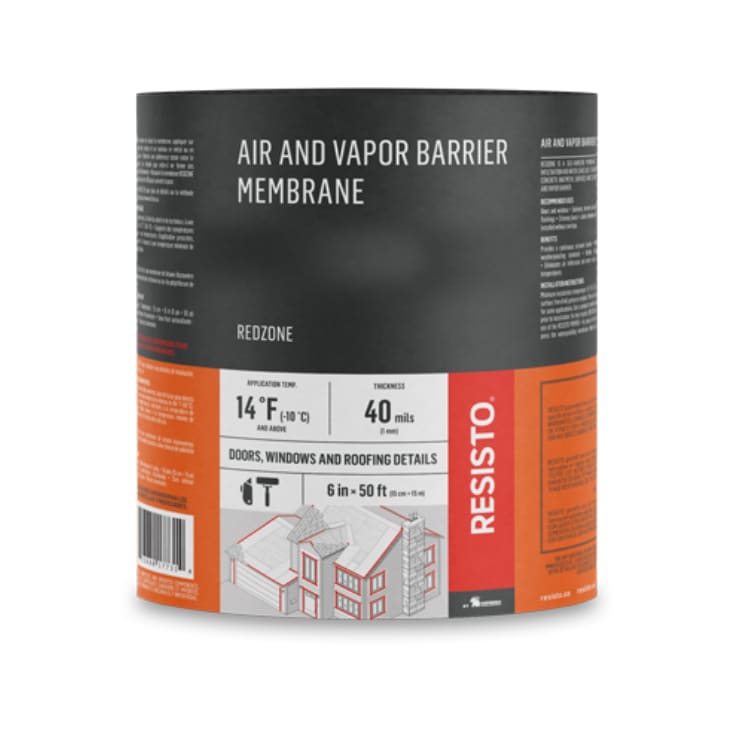

Redzone Air And Vapor Barrier Membrane are a 1 mm (40 mils) self-adhesive membrane composed of elastomeric SBS bitumen and trilaminate woven polyethylene. The under face is composed of a silicone film easily detachable. It seals air and vapor around door and window frames as well as around roof details.

Sheet Width

Width

Standard Sizes: 4", 6", 9", 1' 0", 1' 6", 3' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 4' 2"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

It is compatible with the use of spray polyurethane foam insulation and can also be used as a masonry flashing, transition membrane, and waterproofing the membrane around openings.

Performance Data

Product Weight Per Area

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.037

Roll Tensile Strength

Weight needed to break the roll, per inch of width

lbs / in

55

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-49

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

-14

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.00001

Resisto

1688 Jean-Berchmans-Michaud Drummondville J2C 8E9

1-877-478-8408

https://www.resisto.ca
