Sopraseal Stick 1100T

Soprema USA

Sopraseal Stick 1100T

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Self-Adhering Membrane Self-Adhering Membrane

Bitumen Bitumen

Sloped Ceiling, Vapor Retarder Sloped Ceiling, Vapor Retarder

Concrete Surfaces, Masonry Surfaces, Unfinished Floor Concrete Surfaces, Masonry Surfaces, Unfinished Floor

Design Options

Product Description

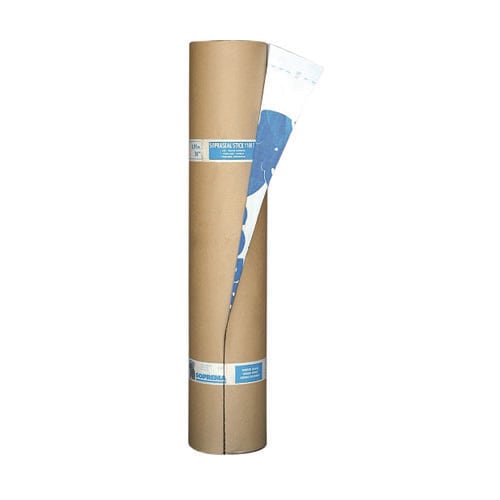

SOPRASEAL Stick 1100T is a 40 mil self-adhered non-permeable water resistive air and vapor barrier composed of a proprietary high-quality elastomeric styrene-butadiene-styrene (SBS) polymer modified bitumen blend and a tough HDPE woven polyethylene composite facer for superior puncture resistance. It is also available in a winter and summer grade.

Sheet Width

Width

Standard Sizes: 6", 9", 1' 0", 1' 6", 3' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 6' 3"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

SOPRASEAL Stick 1100T is used with a primer and as an air and vapor barrier on vertical masonry, concrete, exterior grade gypsum, OSB, metal, and exterior grade plywood sheathing.

Performance Data

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.031

Product Weight Per Area

lb / ft ^ 2

0.2

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-49

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

14

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.00001
