Air-Bloc 16MR

Henry Company

Air-Bloc 16MR

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Fluid Applied Membrane Fluid Applied Membrane

Mineral Mineral

Sloped Ceiling, WRB (Weather/Water Resistant Barrier) Sloped Ceiling, WRB (Weather/Water Resistant Barrier)

Concrete Surfaces, Masonry Surfaces, Unfinished Floor Concrete Surfaces, Masonry Surfaces, Unfinished Floor

Design Options

Product Description

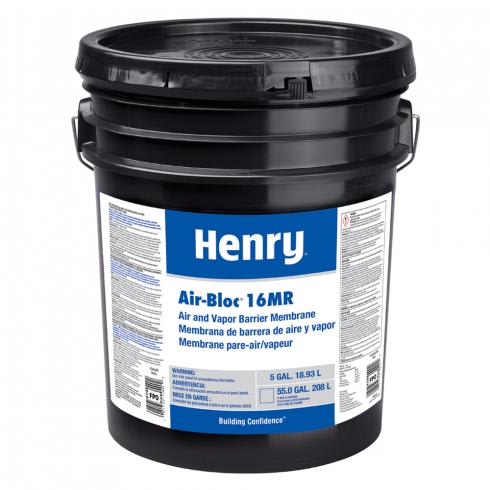

Henry Air-Bloc 16MR is a fluid-applied, vapor impermeable air and water barrier when applied to above-grade wall assemblies. It is single-component, water-based, and cures to a tough monolithic rubber-like membrane, which resists air leakage and water penetration.

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Sheet Length

Height

Sheet Width

Width

Manufacturer Design Notes

Excellent adhesion to most construction surfaces such as exterior gypsum boards, CMU, concrete, stone, wood and metal

Performance Data

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.03

Product Weight Per Area

lb / ft ^ 2

11.1

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-40

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

20

Film Tensile Strength

Pressure required to break the film

psi

100

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.00026
