Fire Resist 705FR-A

Carlisle Coatings and Waterproofing

Fire Resist 705FR-A

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Vapor Retarder (Class I) Vapor Retarder (Class I)

Fully Adhering Fully Adhering

Proprietary Material Proprietary Material

Ceiling, Sloped Roof, Wall Ceiling, Sloped Roof, Wall

Concrete, Masonry, Metal, Wood Sheathing Concrete, Masonry, Metal, Wood Sheathing

Design Options

Product Description

Fire Resist 705FR-A Air & Vapor Barrier is a 40-mil-thick (0.040 inch) self-adhered sheet air and vapor barrier composite membrane consisting of a rubberized-asphalt adhesive laminated to fire resistant aluminum foil/HDPE composite facer.

Sheet Width

Width

Standard Sizes: 4", 6", 9", 1' 0", 1' 6", 2' 0", 3' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 6' 3", 8' 4"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

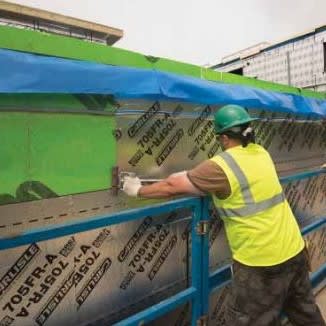

Fire Resist 705FR-A is designed for use in above-grade wall assemblies to function as air, vapor, and water barrier. Fire Resist 705FR-A can be applied over many common building materials including gypsum sheathing, concrete masonry unit (CMU), concrete, wood, structural steel, metal flashings, aluminum extrusions, and rigid PVC (i.e. pipe/conduit, window frames).

Performance Data

Product Weight Per Area

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.01

Roll Tensile Strength

Weight needed to break the roll, per inch of width

lbs / in

44

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-25

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

25

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.0002

Carlisle Coatings and Waterproofing

900 Hensley Lane Wylie 75098

(800) 527-7092

https://www.carlisleccw.com
