Insulfoam Type XI (5 PSI)

Insulfoam, a Carlisle Company

Insulfoam Type XI (5 PSI)

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Rigid Panels Rigid Panels

EPS (Expanded Polystyrene) EPS (Expanded Polystyrene)

Basement Floor Insulation, Basement Wall Insulation, Exterior or Interior Wall Insulation, Roof Insulation Basement Floor Insulation, Basement Wall Insulation, Exterior or Interior Wall Insulation, Roof Insulation

Design Options

Product Description

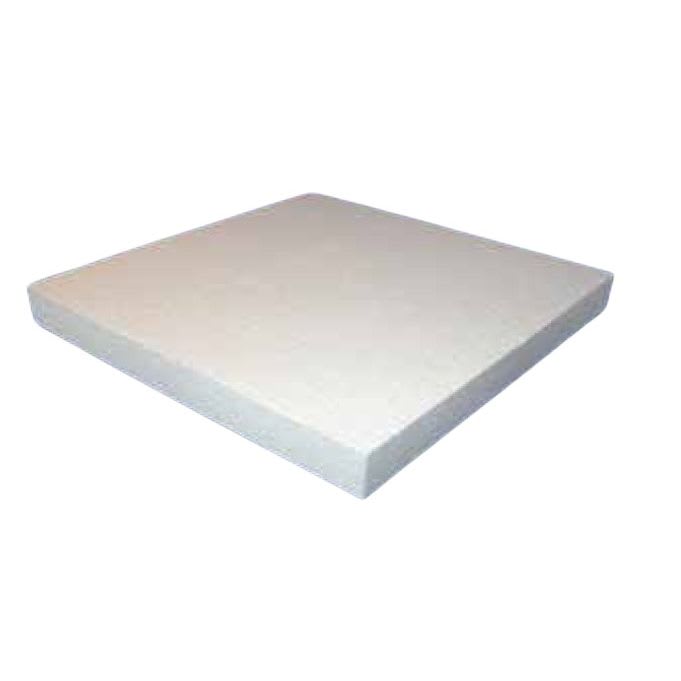

InsulFoam XI is versatile insulation consisting of a superior closed-cell, lightweight and resilient expanded polystyrene (EPS). InsulFoam XI has a nominal density of 0.70 lb/ft3. In addition, InsulFoam XI offers a long-term, stable R-Value and has excellent dimensional stability, compressive strength and water resistance properties.
Insulfoam XI is typically available in 4' x 4' and 4' x 8' sizes with thickness from 1⁄4" to 40", and is readily available in custom lengths and width with little to no impact on lead time. It is also available in tapered panels. Also used in EIFS and stucco insulation.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 4' 0", 8' 0"

Thickness

Standard Sizes: 0-1/4", 0-1/2", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 6-1/2", 7", 7-1/2", 8", 8-1/2", 9", 9-1/2", 10", 10-1/2", 11", 11-1/2", 12", 12-1/2", 13", 13-1/2", 14", 14-1/2", 15", 15-1/2", 16", 16-1/2", 17", 17-1/2", 18", 18-1/2", 19", 19-1/2", 20", 20-1/2", 21", 21-1/2", 22", 22-1/2", 23", 23-1/2", 24", 24-1/2", 25"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

4

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Smoke Development

As defined by the ASTM E84 testing standard

Units: (unitless)

300

Product Density

lbs / ft^3

0.7

Flame Spread

As defined by the ASTM E84 testing standard

Units: (unitless)

20

Compressive Strength

psi

10

Insulfoam, a Carlisle Company

Canyon Road and 192nd Street Frederickson 98387

253.271.3056

https://www.insulfoam.com
