Bifold Doors

Loewen Windows

Bifold Doors

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Folding Door System Folding Door System

Stile & Rail Stile & Rail

Solid Wood Core Solid Wood Core

Stile & Rail Folding Door System Stile & Rail Folding Door System

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

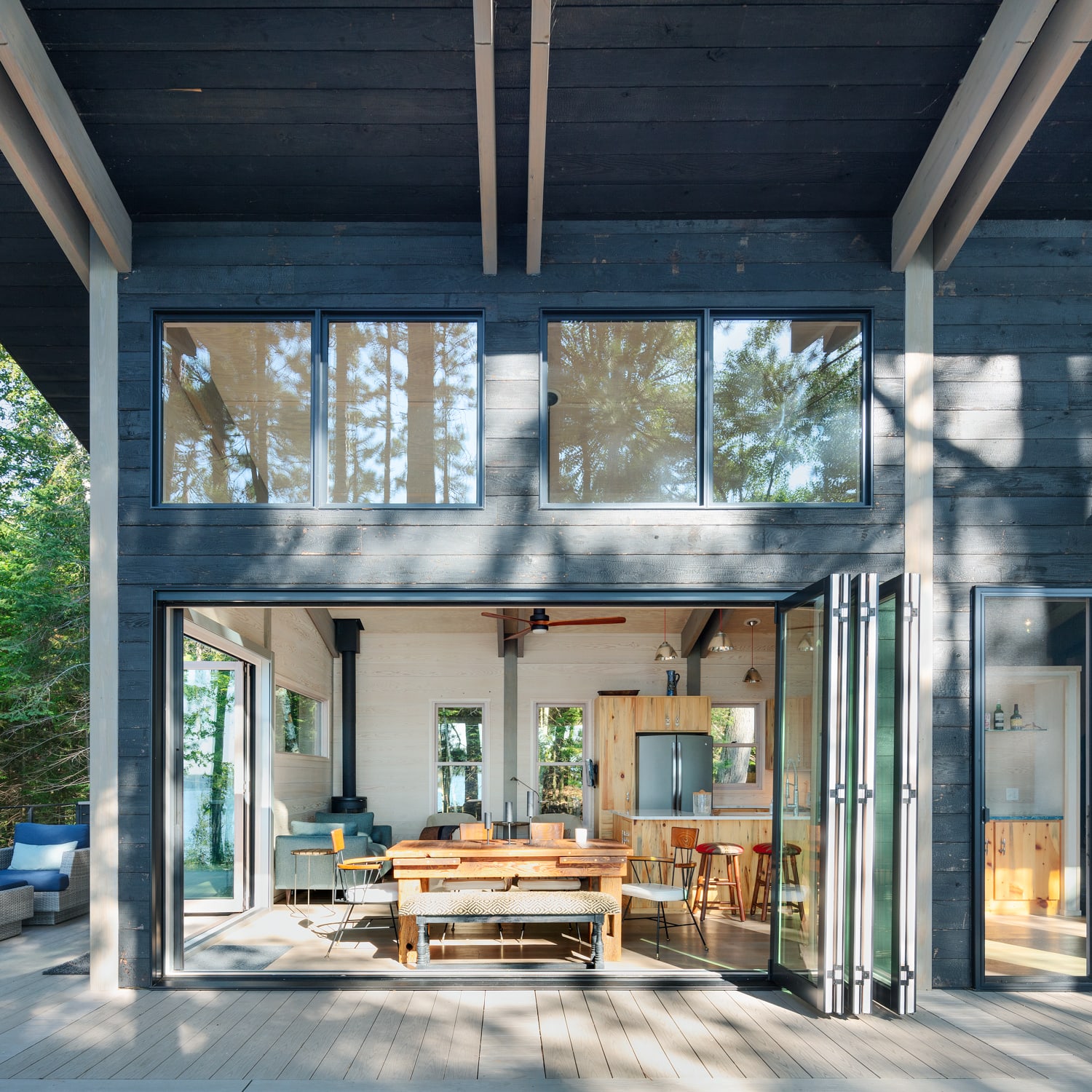

Available in configurations of up to 16 panels (52 feet wide), our customers are bound to make a statement with our BiFold doors.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.


7 Leaf Frame

Width

Standard Sizes: 9' 5-13/16", 22' 8"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

8 Leaf Frame

Width

Standard Sizes: 10' 9-3/4", 25' 10-5/8"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

4 Leaf Frame

Width

Standard Sizes: 5' 5-13/16", 13' 0-1/4"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

2 Leaf Frame

Width

Standard Sizes: 2' 9-15/16", 6' 7-1/16"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

3 Leaf Frame

Width

Standard Sizes: 4' 1-15/16", 9' 9-11/16"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

Leaf

Width

Height

Standard Sizes: 1' 3-3/4", 1' 9-3/4", 2' 4-1/2", 2' 7-13/16", 2' 10-1/2", 3' 2-3/8", 6' 4-1/16", 6' 5-13/16", 6' 10-1/2", 7' 7-1/16", 7' 10", 7' 11-5/8", 8' 6-13/16"

Custom Height Available

Thickness

6 Leaf Frame

Width

Standard Sizes: 8' 1-13/16", 19' 5-7/16"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

5 Leaf Frame

Width

Standard Sizes: 6' 9-13/16", 16' 2-13/16"

Custom Width Available

Height

Min: 6' 8-1/2" Max: 8' 11-5/16"

Custom Height Available

Thickness

Standard Sizes: 6-9/16"

Manufacturer Dimension Notes

Up to 15-Leaf Frame (580.69"W)

Frame Finish

Alpine White

Alpine White

Exterior

Leaf Finish

Alpine White

Alpine White

Exterior

Pannings, Casings or Trims

2' Brickmould

2' Brickmould

Exterior

Manufacturer Design Notes

Grille bars are permanently applied to the interior and exterior.

Ogee Profile — 3/4” (19 mm), 1 1/8” (30 mm), 2” (51 mm)

Putty Profile — 5/8” (16 mm), 7/8” (22 mm), 1 1/8”(30 mm), 2” (51 mm)

Square Profile (interior only) — 5/8” (16mm), 3/4” (19mm), 7/8” (22 mm), 1 1/8” (30 mm), 2” (51 mm)



Performance Data

Performance Grade

Units: (unitless)

30

Certifications

AAMA

Gold

Energy Star

Certified, Region Not Specified

NFRC Label

Available

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Loewen Windows, Bifold Doors

Option Features Condensation Resistance SHGc (Full Lite) U-Value (Full Lite) Visible Transmittance (VT)
LE180-CL N Narrow (75W) Glass Type 50 0.45 0.36 0.55
LE272-CL N Narrow (75W) Glass Type 50 0.29 0.35 0.5
LE366-CL N Narrow (75W) Glass Type 50 0.2 0.35 0.45

Loewen Windows

77 Hwy. 52 W. P. O. Box 2260 Steinbach, Manitoba, Canada R0A 2A0

(800) 563-9367

https://www.loewen.com

Learn More
