NW Aluminum 840

Nana Wall Systems

NW Aluminum 840

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Folding Door System Folding Door System

Flush Flush

Folding Door System Folding Door System

Aluminum Aluminum

Aluminum Aluminum

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

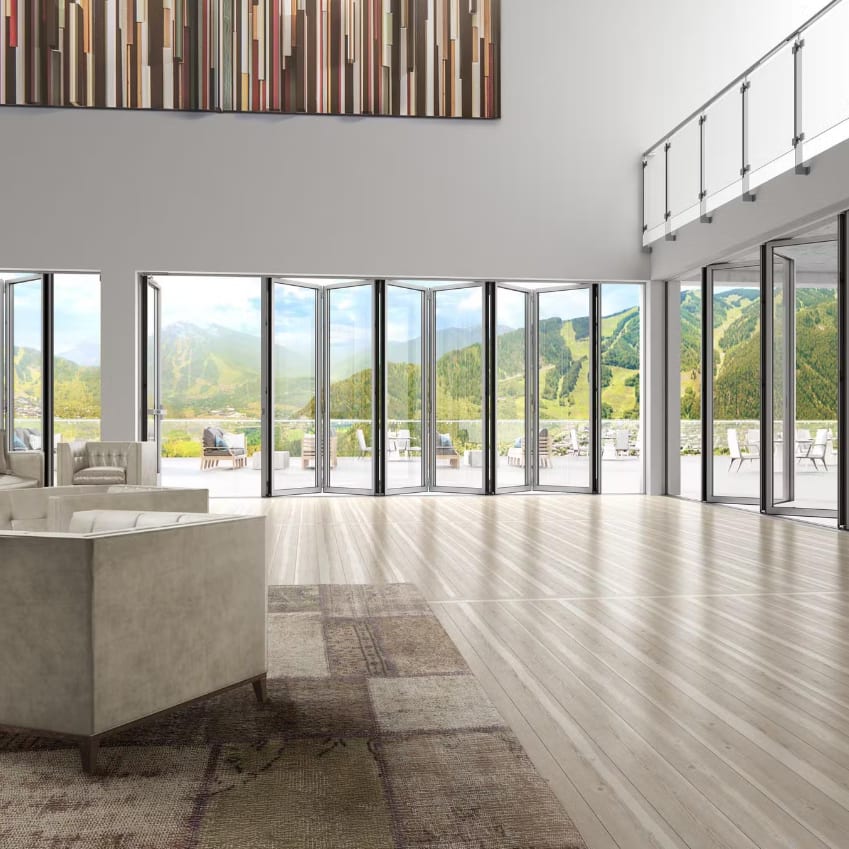

The innovative NW Aluminum 840 provides the slimmest aluminum frame of the NanaWall folding glass wall product line. With a frame profile styled in a crisp, angular design, the intersection of two folding panels is a mere 3 7/8" (99 mm). This floor supported system offers an extremely streamlined appearance with minimal exposed hardware, creating a new level of aesthetics.
NanaWall offers over 200 RAL GLOSS powder coated and over 200 RAL MATTE powder coated colors for an additional upcharge.
Other standard anodized finishes like black anodized and steel-effect DB mica finishes are available on request.


DOUBLE GLAZED:
Can accommodate total glass thicknesses from 7/8" (22mm) to 1 9/16" (40 mm).
TRIPLE GLAZING:
Can accommodate total glass thicknesses from 1 9/16" (40 mm)to 2 7/16" (62 mm)

7 Leaf Frame

Width

Min: 13' 10" Max: 25' 1"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

12 Leaf Frame

Width

Min: 23' 6" Max: 43' 0"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

8 Leaf Frame

Width

Min: 15' 8" Max: 28' 8"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

4 Leaf Frame

Width

Min: 7' 10" Max: 14' 4"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

2 Leaf Frame

Width

Min: 3' 11" Max: 7' 2"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

9 Leaf Frame

Width

Min: 17' 9" Max: 32' 3"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

10 Leaf Frame

Width

Min: 19' 8" Max: 35' 10"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

3 Leaf Frame

Width

Min: 5' 10" Max: 10' 9"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

Leaf

Width

Height

Max: 3' 7"

Thickness

6 Leaf Frame

Width

Min: 11' 9" Max: 21' 6"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

5 Leaf Frame

Width

Min: 9' 10" Max: 17' 11"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

11 Leaf Frame

Width

Min: 21' 7" Max: 39' 5"

Custom Width Available

Height

Standard Sizes: 6' 6", 6' 10", 7' 2", 7' 6", 7' 10", 8' 2", 8' 6", 8' 10", 9' 2", 9' 6", 9' 10", 10' 2", 10' 6", 10' 10", 11' 2", 11' 6"

Custom Height Available

Thickness

Standard Sizes: 3-5/16"

Manufacturer Dimension Notes

Any custom size is available upto the maximum limit given.

Door Hardware

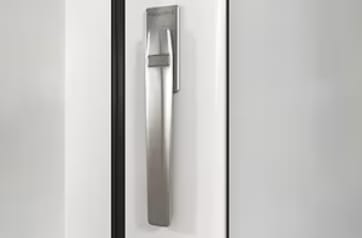

Contemporary Stainless Steel Handles

Contemporary Stainless Steel Handles



Frame Finish

1000 - Green Beige

1000 - Green Beige

Interior or Exterior

Leaf Finish

1000 - Green Beige

1000 - Green Beige

Interior or Exterior

Manufacturer Design Notes




Performance Data

Performance Grade

Units: (unitless)

40

Number of Tracks

Units: (unitless)

1

Certifications

AAMA-1304 Forced Entry Resistance

In accordance with requirements

ADA Compliance

Yes

NFRC Label

Available

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Nana Wall Systems, NW Aluminum 840

Option Features SHGc (Full Lite) U-Value (Full Lite) Visible Transmittance (VT)
Double IG Alternate Lower SHGC Glass Type 0.19, 0.2 0.25, 0.29 0.37
Double IG Clear Glass Type 0.58 0.48 0.6
Double IG Standard Glass Type 0.26 0.25, 0.3 0.51
Triple IG Low E x 2 Glass Type 0.22 0.12, 0.15 0.4
