EnergyShield Pro

Atlas Roofing Corporation

EnergyShield Pro

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Ceiling, Crawl-Space Ceiling, OEM Use, Sloped Ceiling Ceiling, Crawl-Space Ceiling, OEM Use, Sloped Ceiling

Behind Masonry or Concrete Wall, Over Sheathings, Unfinished Floor Behind Masonry or Concrete Wall, Over Sheathings, Unfinished Floor

Design Options

Product Description

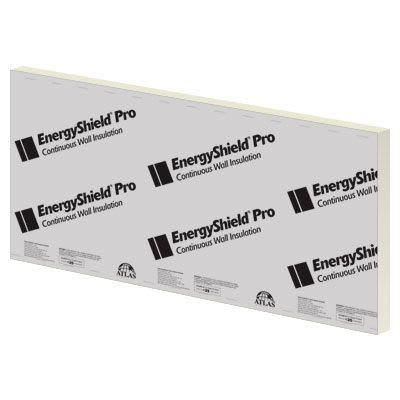

Atlas EnergyShield Pro is composed of a Class A closed cell polyisocyanurate (polyiso) foam core faced with a reflective 12 mil reinforced foil facer on one side and a white 12 mil reinforced acrylic-coated aluminum facer on the other.
EnergyShield Pro combines high R-value, Class A foam core, durable aluminum facers and water resistive barrier attributes in a high performance rigid wall insulation.

Insulation

Width

Standard Sizes: 1' 4", 2' 0", 4' 0"

Height

Standard Sizes: 8' 0", 9' 0"

Thickness

Standard Sizes: 0-3/4", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4"

Manufacturer Design Notes

They can be used for exterior continuous insulation (CI) over wood or gypsum sheathings. It is used over existing cladding to improve energy efficiency with continuous insulation (CI) and provide a level surface prior to installing a new cladding

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

6.67

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.1

Smoke Development

As defined by the ASTM E84 testing standard

450

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

5, 6.5, 9.8, 13.1, 16, 19.7, 22.2, 26

Minimum Recycled

The minimum amount of the product's input materials that come from recycled sources

%

10

Linear Shrinkage

The percent that a product shrinks, usually in response to heat.

%

1.5

Flame Spread

As defined by the ASTM E84 testing standard

25

Compressive Strength

psi

25
