UPC 500 CLASSIC

Polycoat Products

UPC 500 CLASSIC

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Sprayed Insulation Sprayed Insulation

Polyurethane Polyurethane

Crawl-Space Ceiling, Exterior Subterranean Wall, Sloped Ceiling, Wall Crawl-Space Ceiling, Exterior Subterranean Wall, Sloped Ceiling, Wall

Unfinished Floor Unfinished Floor

Design Options

Product Description

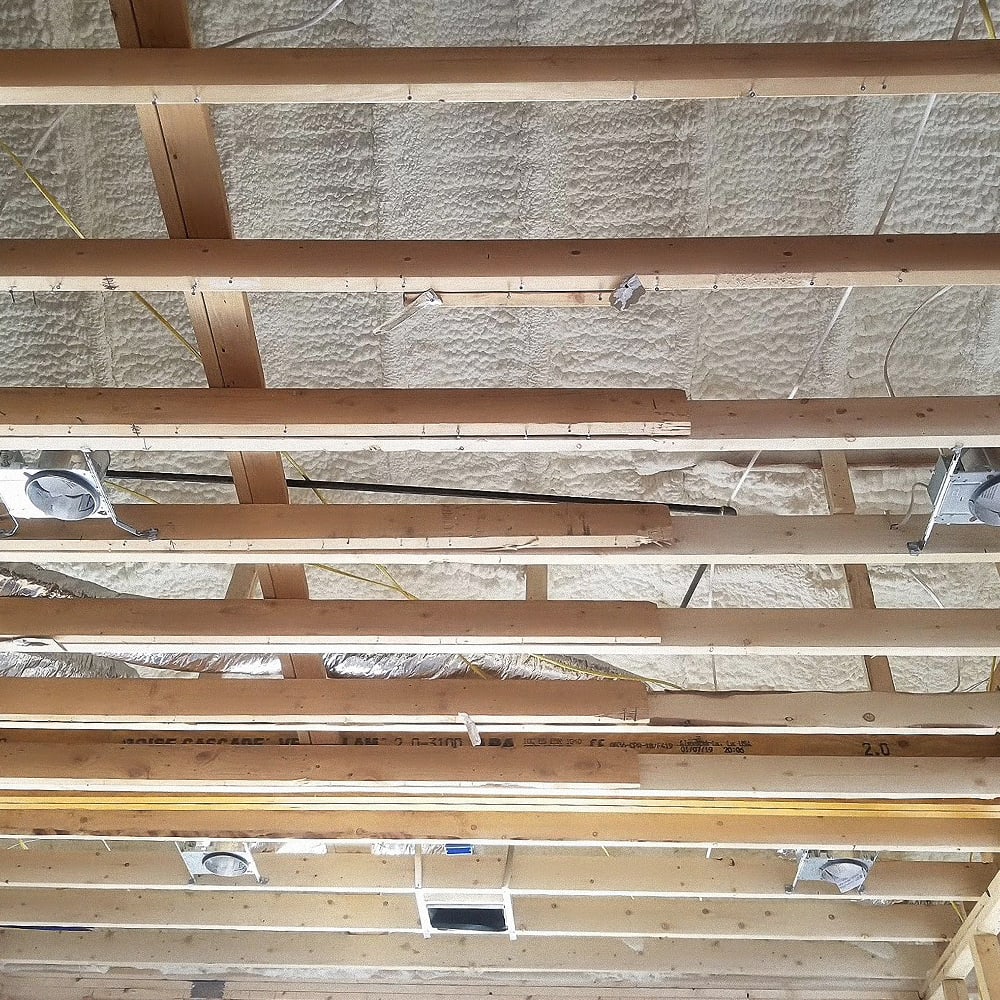

UPC 500 CLASSIC is UPC’s original half-pound open-cell foam. A no-mix, no-fuss formula that provides consistent, high-quality performance. Insulates and seals all cracks, gaps, and voids with a seamless, custom-fit insulation. Unlike traditional factory-made insulation products, UPC 500 will not lose its shape or thermal resistance performance over time. A cost-effective, air-impermeable insulation solution for residential, commercial and institutional applications

Insulation

Width

Height

Thickness

Standard Sizes: 1", 2", 3", 3-1/2", 4", 5", 5-1/2", 6", 7", 7-3/4", 8", 9", 10", 11", 12", 13", 14", 15", 16"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

3.9

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Tensile Strength

psf

482.4

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

3.9, 7.6, 11, 13, 15, 19, 21, 22, 26, 29, 30, 34, 37, 41, 45, 49, 52, 56, 60

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

8.4

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

3.8

Product Density

lbs / ft^3

0.5

Flame Spread

As defined by the ASTM E84 testing standard

15

Smoke Development

As defined by the ASTM E84 testing standard

200
