R-Tech VII (60 PSI)

Insulfoam, a Carlisle Company

R-Tech VII (60 PSI)

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

EPS (Expanded Polystyrene) EPS (Expanded Polystyrene)

Crawl-Space Ceiling, Exterior Subterranean Wall, Floor, Sloped Ceiling Crawl-Space Ceiling, Exterior Subterranean Wall, Floor, Sloped Ceiling

Unfinished Floor Unfinished Floor

Design Options

Product Description

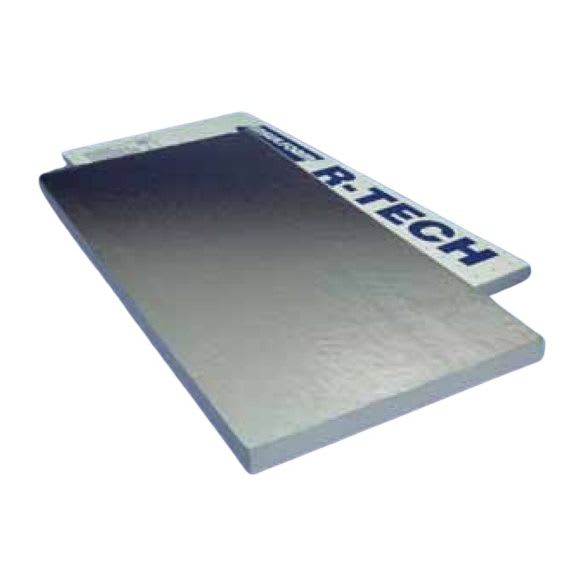

R-Tech is engineered rigid insulation consisting of a superior closed-cell, lightweight and resilient expanded polystyrene (EPS) with advanced polymeric laminate facers. R-Tech has excellent dimensional stability, compressive strength, and water resistance properties. R-Tech is an ENERGY STAR qualified insulation and can contribute towards LEED credits. Also available as fanfold insulation.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 8' 0"

Thickness

Standard Sizes: 0-1/2", 0-3/4", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3", 3-1/4", 3-1/2", 3-3/4", 4", 4-1/4", 4-1/2", 4-3/4", 5"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

7.4

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Product Density

lbs / ft^3

2.8

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2

Smoke Development

As defined by the ASTM E84 testing standard

150, 300

Compressive Strength

psi

60

Flame Spread

As defined by the ASTM E84 testing standard

20

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

5.1, 6.25, 7.4, 8.75, 9.7, 10.85, 12, 13.15, 14.3

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1.1
