CCW-705

Carlisle Coatings and Waterproofing

CCW-705

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Vapor Retarder (Class I) Vapor Retarder (Class I)

Fully Adhering Fully Adhering

Bitumen Bitumen

Ceiling, Sloped Roof, Wall Ceiling, Sloped Roof, Wall

Concrete, Masonry, Metal, Wood Sheathing Concrete, Masonry, Metal, Wood Sheathing

Design Options

Product Description

CCW-705 Air & Vapor Barrier is a 40-mil-thick (0.040" inch) composite membrane consisting of a rubberized-asphalt adhesive laminated to a tough, dimensionally stable, smooth-surfaced poly film. CCW-705 is provided in rolls of various widths lined with disposable silicone-coated plastic release film.

Sheet Width

Width

Standard Sizes: 4", 6", 9", 1' 0", 1' 6", 2' 0", 3' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 6' 3", 8' 4"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

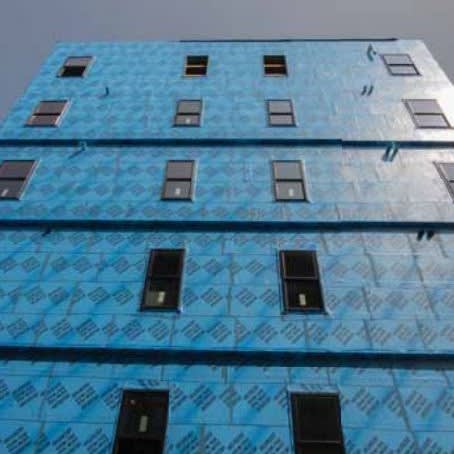

CCW-705 is designed for use in above-grade wall assemblies to function
as air, vapor, and water barrier. CCW-705 can be applied over many common building materials including gypsum sheathing, concrete masonry unit (CMU), concrete, wood, structural steel, metal flashings, aluminum extrusions, and rigid PVC (i.e. pipe/conduit, window frames). All substrates shall be prepared with a CCW contact adhesive to provide consistent adhesion of CCW-705 in job site conditions.

Performance Data

Product Weight Per Area

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.08

Roll Tensile Strength

Weight needed to break the roll, per inch of width

lbs / in

26

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

-25

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0
