Ultimate Multi-Slide Door

Marvin Windows and Doors

Ultimate Multi-Slide Door

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Multi-Track Sliding Multi-Track Sliding

Stile & Rail Stile & Rail

Solid Wood Core Solid Wood Core

Stile & Rail Sliding Door (Multi-Track) Stile & Rail Sliding Door (Multi-Track)

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

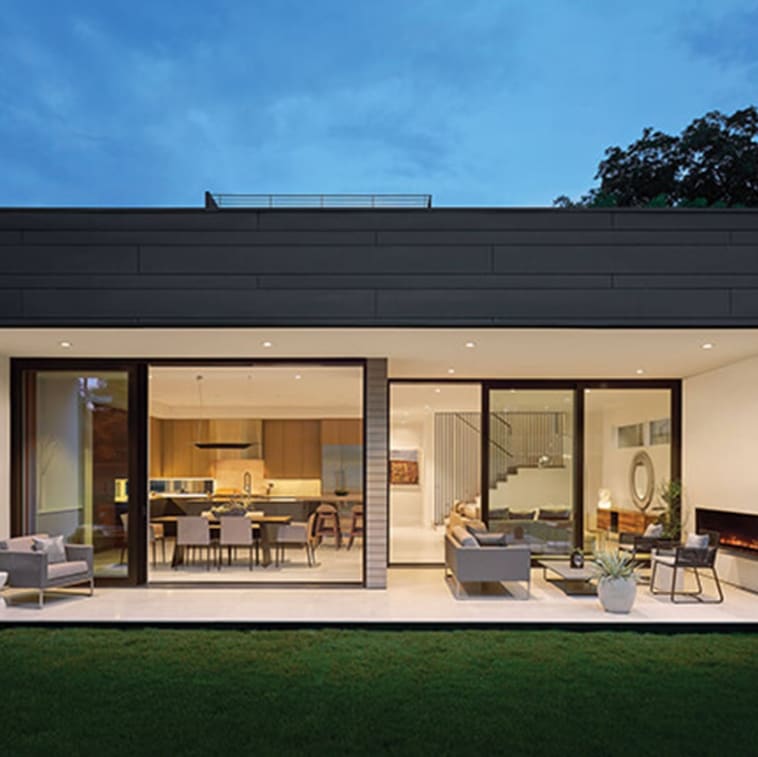

The Marvin Signature Ultimate Multi-Slide Door is more than just a panoramic door, it’s a gateway to indoor-outdoor living with performance that stands up to any weather, coast to coast. When accessibility is important, choose an optional low-profile sill that maintains a smooth, flush transition from indoors to out. In sizes as big as 56 feet wide or small enough to create a counter-height, kitchen pass-through option for a patio or deck, this door opens possibilities.
For projects that call for the natural or historic beauty of wood exteriors, we offer a selection of high-quality exterior wood options, including Pine, Vertical Grain Douglas Fir, Mahogany and Primed Pine.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

Single Door Frame

Width

Min: 1' 8-1/4" Max: 4' 2-5/16"

Height

Min: 5' 2" Max: 11' 10-11/16"

Thickness

Standard Sizes: 4-9/16"

Double Door Frame

Width

Min: 3' 2-3/8" Max: 8' 2-1/2"

Height

Min: 5' 2" Max: 11' 10-11/16"

Thickness

Standard Sizes: 4-9/16"

Leaf

Width

Height

Min: 2' 5-9/16" Max: 5' 11"

Thickness

Standard Sizes: 2-1/4"

Door Hardware

Exterior Pull

Exterior Pull



Frame Finish

Bahama Brown

Bahama Brown

Exterior

Leaf Finish

Bahama Brown

Bahama Brown

Exterior

Pannings, Casings or Trims

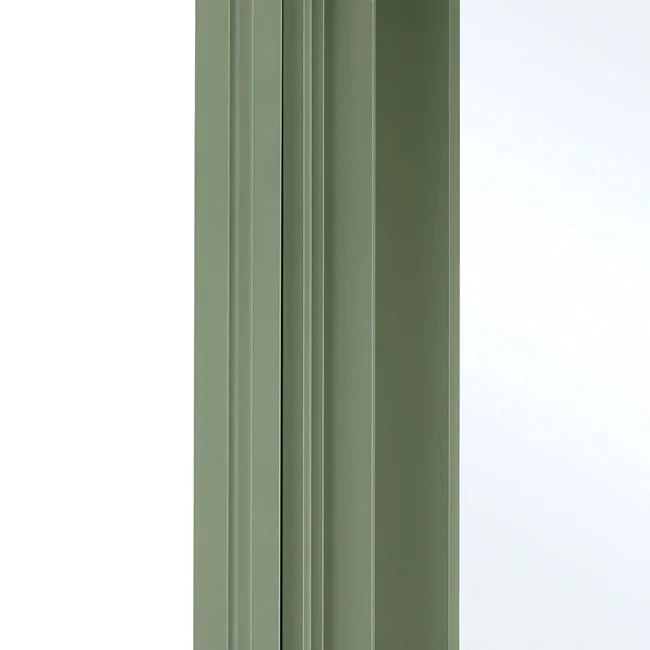

Brick Mould

Brick Mould

Exterior

Privacy Glass Option

Aqualite

Aqualite



Performance Data

Performance Grade

Units: (unitless)

40

Number of Tracks

Units: (unitless)

2, 3, 4, 5, 6

Certifications

AAMA

Gold

Energy Star

Southern

Energy Star

Northern

Energy Star

South-Central

Energy Star

North-Central

NFRC Label

Available

OITC Rating

25-30

STC Rating

30-35

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Marvin Windows and Doors, Ultimate Multi-Slide Door

Option Features Glass Thickness SHGc (Full Lite) U-Value (Full Lite) Visible Transmittance (VT)
LoE 180 /argon/clr/argon /LoE 180 Glass Type 0.9375 0.57 0.23 0.7
LoE 272/argon/laminate Glass Type 0.9375 0.42 0.28 0.69
LoE 366 /krypton/clr/krypton/LoE 180 Glass Type 0.9375 0.28 0.17 0.57

Manufacturer Performance Notes

Product tested - Ultimate Multi-Slide Door Stacked Bi-Parting (10 panels)
