ZIP System Insulated R‑Sheathing

Huber Engineered Woods

ZIP System Insulated R‑Sheathing

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Integral Sheathing With Factory Applied Membranes And Insulation Integral Sheathing With Factory Applied Membranes And Insulation

Proprietary Material Proprietary Material

Air Barrier, Sloped Ceiling Air Barrier, Sloped Ceiling

Exterior Walls Only, Unfinished Floor Exterior Walls Only, Unfinished Floor

Design Options

Product Description

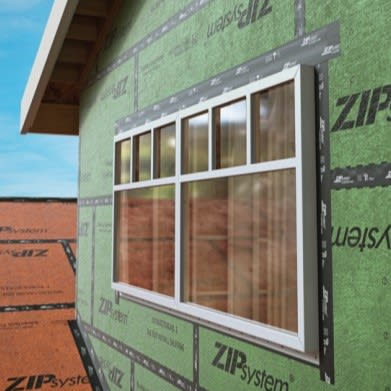

ZIP System R-sheathing is the simple all-in-one structural panel with built-in exterior insulation. Featuring integrated moisture, air and thermal protection, ZIP System R-sheathing completely reimagines traditional wall assemblies by streamlining exterior water, air and thermal management.

Sheet Width

Width

Standard Sizes: 4' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 8", 9", 10"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 1", 1-1/2", 2", 2-1/2"

Performance Data

Product Weight Per Area

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

3.6, 6.6, 9.6, 12.6

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-40

Film Tensile Strength

Pressure required to break the film

psi

730

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2

Compression Strength

psi

20

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.007283
