Blueskin VP160

Henry Company

Blueskin VP160

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Self-Adhering Membrane Self-Adhering Membrane

Polymer Polymer

Air Barrier, Sloped Ceiling Air Barrier, Sloped Ceiling

Concrete Surfaces, Masonry Surfaces, Unfinished Floor Concrete Surfaces, Masonry Surfaces, Unfinished Floor

Design Options

Product Description

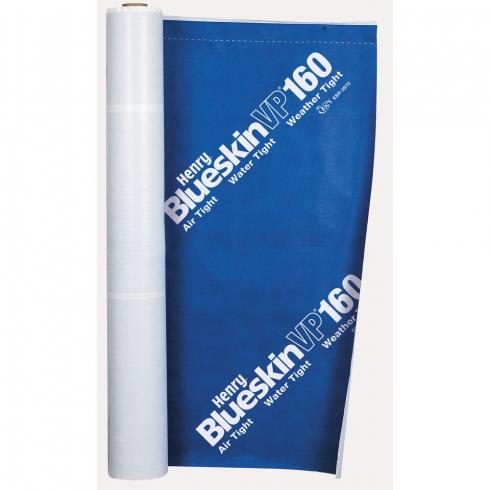

Henry Blueskin VP160 is a self-adhered vapor permeable, water-resistive air barrier membrane consisting of an engineered film and a patented, permeable adhesive technology with split-back poly-release film. Blueskin® VP160 fully adheres to the wall substrates in a weatherboard method without mechanical attachment.

Sheet Width

Width

Standard Sizes: 4", 6", 9", 1' 0", 4' 0"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 8' 4"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

Acceptable substrates are exterior-grade gypsum sheathing, plywood, OSB, precast or cast-in-place concrete, concrete block, steel, aluminum, and galvanized metal.

Performance Data

Product Weight Per Area

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

29

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-40

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

20

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.003
