F5 Air & Vapor Barrier

Mule-Hide Products Co., Inc.

F5 Air & Vapor Barrier

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Vapor Retarder (Class I) Vapor Retarder (Class I)

Fully Adhering Fully Adhering

Bitumen Bitumen

Ceiling, Sloped Roof, Wall Ceiling, Sloped Roof, Wall

Concrete, Masonry Concrete, Masonry

Design Options

Product Description

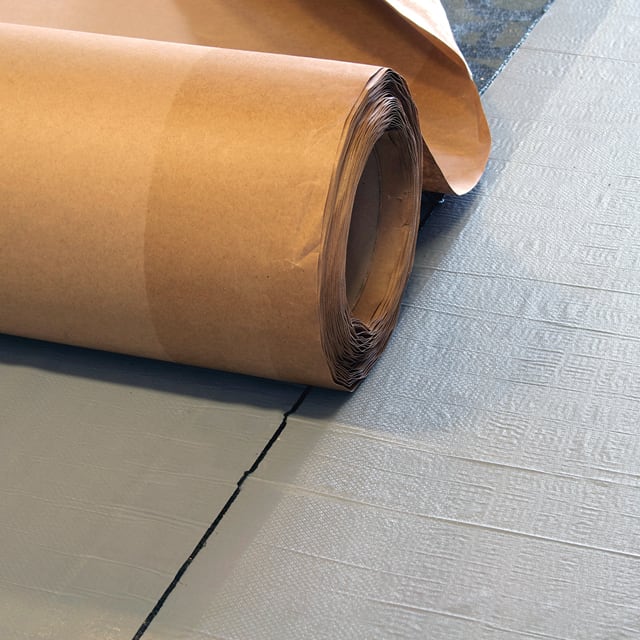

Mule-Hide F5 Air and Vapor Barrier is a 40-mil composite consisting of 35 mils of self-adhering rubberized asphalt laminated to a 5-mil woven polypropylene film. It may also be used as a temporary roof.

Sheet Width

Width

Standard Sizes: 3' 3"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 8' 4"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

The factory-controlled thickness of the membrane ensures uniform barrier properties on the job; the woven polypropylene film increases strength and has a non-skid surface suitable for the bonding of subsequent layers.

Performance Data

Product Weight Per Area

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.015

Film Tensile Strength

Pressure required to break the film

psi

250

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0
