Classic Craft Doors

Harvey Building Products

Classic Craft Doors

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Swinging (Hinged) Swinging (Hinged)

Stile & Rail Stile & Rail

Polyurethane Core Polyurethane Core

Stile & Rail Swinging Door Stile & Rail Swinging Door

Fiberglass Fiberglass

Fiberglass Fiberglass

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

This Collection pushes the envelope of design for the next generation. Focusing on a streamlined aesthetic with a modern flair.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.


Single Door Frame

Width

Min: 2' 7-5/8" Max: 3' 7-5/8"

Height

Standard Sizes: 6' 7-1/2", 6' 10", 7' 2", 8' 2"

Thickness

Standard Sizes: 4-9/16"

Double Door Frame

Width

Min: 5' 2-9/16" Max: 6' 3-1/4"

Height

Standard Sizes: 6' 7-1/2", 6' 10", 7' 2", 8' 2"

Thickness

Standard Sizes: 4-9/16"

Leaf

Width

Height

Standard Sizes: 2' 6", 2' 8", 2' 10", 3' 0", 3' 6", 6' 8", 7' 0", 8' 0"

Thickness

Arch Door Top

Arch Door Top

Arch Door Top

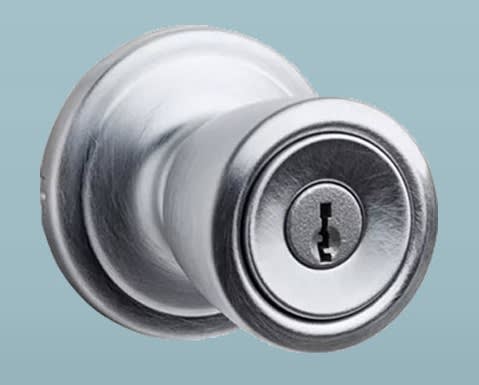

Door Hardware

Abbey

Abbey



Frame Finish

Acorn

Acorn

Single Color (Interior/Exterior Match)

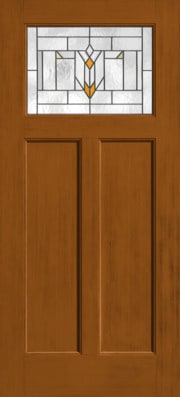

Leaf Design Style

CCA2330XK-SDLF3

CCA2330XK-SDLF3



Leaf Finish

Acorn

Acorn

Single Color (Interior/Exterior Match)

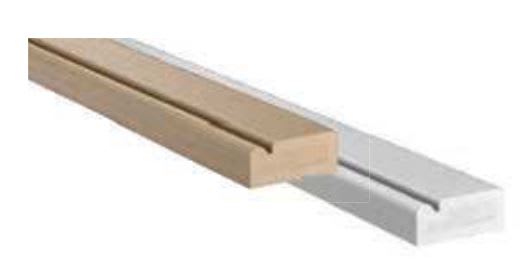

Pannings, Casings or Trims

1-5/8" Florida Brickmould WM176

1-5/8" Florida Brickmould WM176

Exterior

Privacy Glass Option

Arborwatch - Decorative Glass

Arborwatch - Decorative Glass



Manufacturer Design Notes





Available in three set of styles collection:
- Artíssa Collection (Casual, Relaxed, Simple)
- Founders Collection (Traditional, Time-Honored, Decorative)
- Visionary Collection (Modern, Confident, Minimal)

Performance Data

U-Factor

The U-value for this door, assuming options are selected that have no glass. If the door comes with glass, see the glazing table for U-values for different glazing options.

Units: Btu / h * ft^2 * °F

0.17

Certifications

NFRC Label

Available

OITC Rating

20-25

STC Rating

25-30

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Harvey Building Products, Classic Craft Doors

Option Features Glass Thickness SHGc (Quarter Lite) U-Value (Quarter Lite) Visible Transmittance (VT) SHGc (Full Lite) U-Value (Full Lite) SHGc (Half Lite) U-Value (Half Lite) SHGc (3/4 Lite) U-Value (3/4 Lite)
Clear/air/clear Glass Type 0.5 0.08 0.08 0.08
E272 / Air / Clear Glass Type 1 0.27 0.16 0.32
E272/air/clear/air/clear Glass Type 1 0.13 0.08 0.24
E366/air/clear Glass Type 0.5 0.18 0.09 0.28
