PanelShield SA

Vaproshield

PanelShield SA

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Mechanically Attached Membrane Mechanically Attached Membrane

Polymer Polymer

Sloped Ceiling, WRB (Weather/Water Resistant Barrier) Sloped Ceiling, WRB (Weather/Water Resistant Barrier)

Concrete Surfaces, Unfinished Floor Concrete Surfaces, Unfinished Floor

Design Options

Product Description

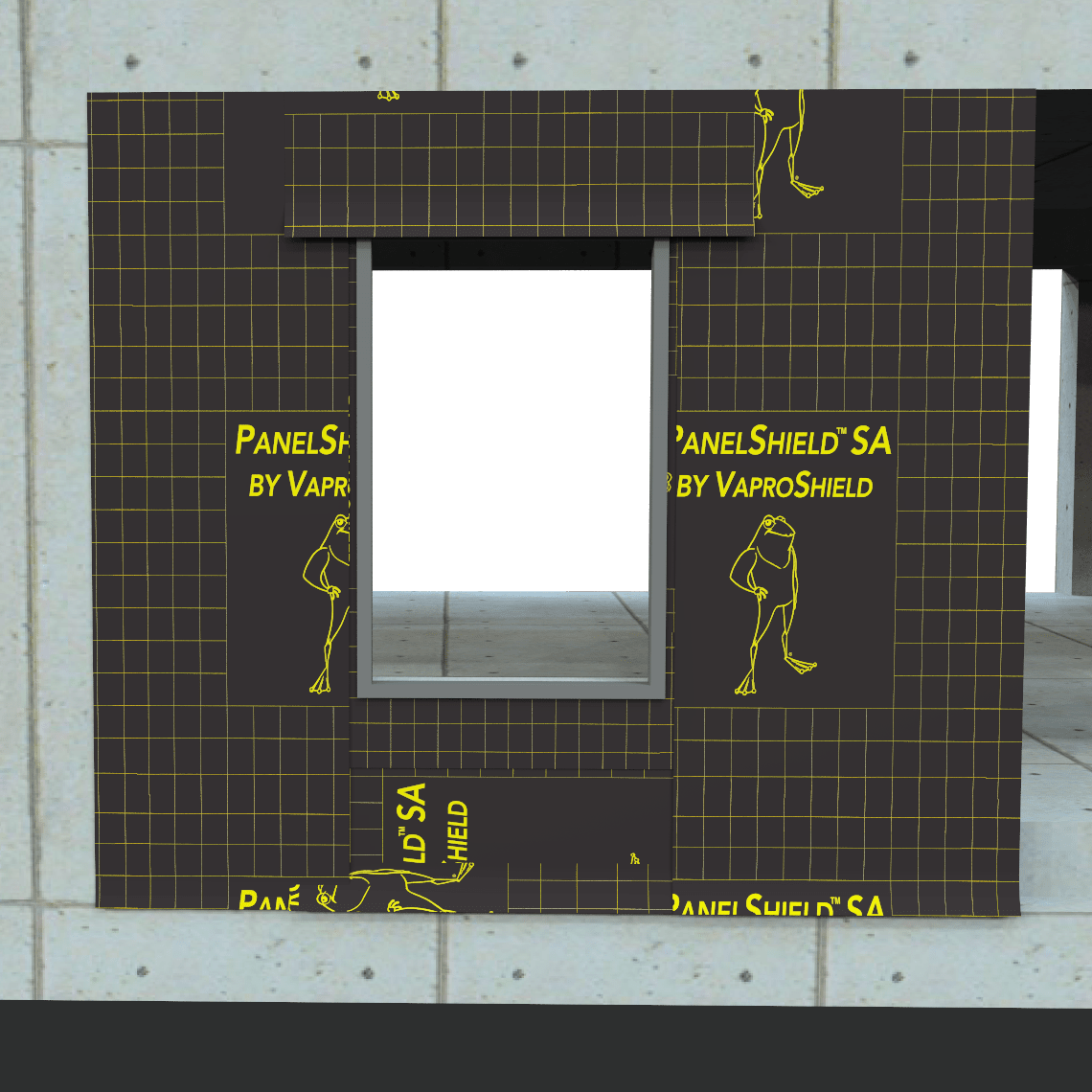

PanelShield SA is a permeable polyester air barrier WRB membrane designed for use in panelization/modular and commercial construction.

Sheet Width

Width

Standard Sizes: 4' 11"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 8' 6"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

Compatible with all VaproShield rough opening flashing accessories eliminating the need for untested outside components.

Performance Data

Product Weight Per Area

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

26.02

Roll Tensile Strength

Weight needed to break the roll, per inch of width

lbs / in

37.7

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-40

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

20

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0
