EnergyShield

Atlas Roofing Corporation

EnergyShield

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Crawl-Space Ceiling, OEM Use, Sloped Ceiling Crawl-Space Ceiling, OEM Use, Sloped Ceiling

Behind Masonry or Concrete Wall, In Tilt-Up Wall Panels, Over Sheathings, Unfinished Floor Behind Masonry or Concrete Wall, In Tilt-Up Wall Panels, Over Sheathings, Unfinished Floor

Design Options

Product Description

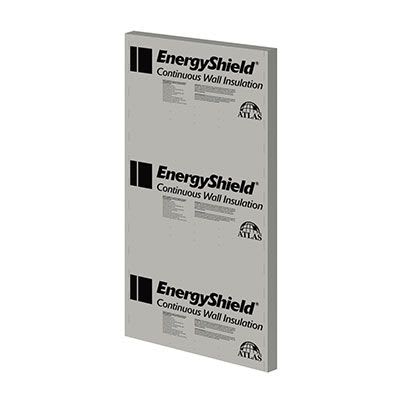

Atlas EnergyShield Wall insulation is composed of a closed cell polyisocyanurate (polyiso) foam core, faced with tri-laminate foil. The blowing agent used to produce the polyiso foam core does not contain any CFCs, HCFCs or HFCs. EnergyShield has zero Ozone Depletion Potential (ODP) and negligible Global Warming Potential (GWP).
EnergyShield combines high R-value, durable foil facers, and water resistive attributes in a high performance rigid wall insulation. EnergyShield is suitable for a variety of continuous insulation (CI) applications.

Insulation

Width

Standard Sizes: 1' 4", 2' 0", 4' 0"

Height

Standard Sizes: 8' 0", 9' 0"

Thickness

Standard Sizes: 0-1/2", 0-3/4", 1", 1-1/2", 2", 3", 3-1/2", 4"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

6.6

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.1

Smoke Development

As defined by the ASTM E84 testing standard

450

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

3.3, 5, 6.5, 9.8, 13.1, 19.7, 22.2, 26

Flame Spread

As defined by the ASTM E84 testing standard

75

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2
