Hunter H-Shield

Hunter Panels

Hunter H-Shield

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Sloped Ceiling Sloped Ceiling

Unfinished Floor Unfinished Floor

Design Options

Product Description

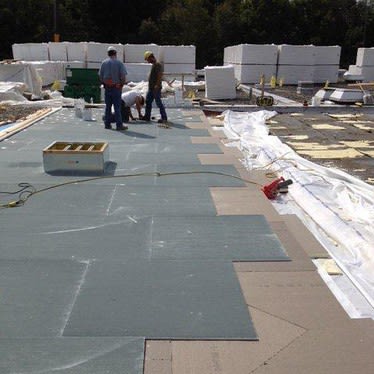

H-Shield is a rigid roof insulation panel composed of a closed cell polyisocyanurate foam core manufactured on-line to fiber reinforced facers on each side. It is manufactured with NexGen Chemistry and contains no CFCs, HCFCs, HFCs. It is Zero ODP, EPA Compliant, and has virtually no GWP. It is also approved for direct application to steel decks. It is also available as special cut products - straight cut and flute fill.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 4' 0", 8' 0"

Thickness

Standard Sizes: 1", 1-1/2", 1-3/4", 2", 2-1/2", 2-3/4", 3", 3-1/2", 3-3/4", 4", 4-1/4", 4-1/2"

Manufacturer Design Notes

Approved under all major roof covering systems – BUR, Modified and Single-Ply.

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

5.7

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1

Flame Spread

As defined by the ASTM E84 testing standard

75

Linear Shrinkage

The percent that a product shrinks, usually in response to heat.

%

2

Compressive Strength

psi

20

Smoke Development

As defined by the ASTM E84 testing standard

450

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

5.7, 8.6, 10.3, 11.4, 14.4, 15, 17.4, 20.5, 22.3, 23.6, 25.8, 26.8
