R-Tech I (10 PSI)

Insulfoam, a Carlisle Company

R-Tech I (10 PSI)

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

EPS (Expanded Polystyrene) EPS (Expanded Polystyrene)

Exterior Subterranean Wall, Roof, Sloped Ceiling Exterior Subterranean Wall, Roof, Sloped Ceiling

Design Options

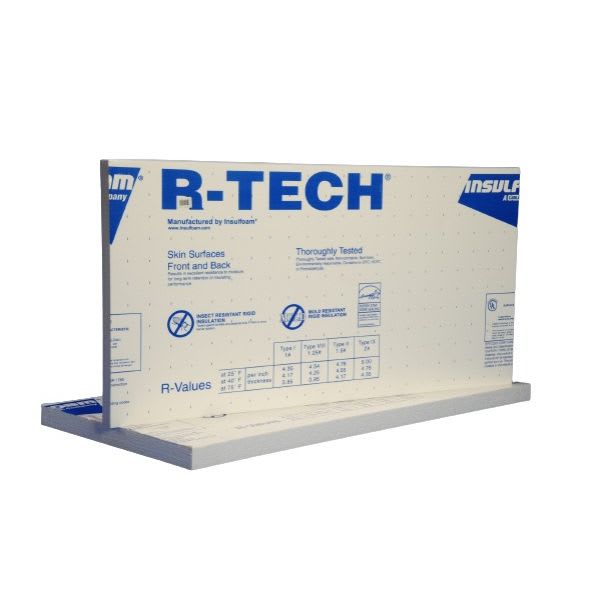

Product Description

R-Tech is engineered rigid insulation consisting of a superior closed-cell, lightweight and resilient expanded polystyrene (EPS) with advanced polymeric laminate facers. R-Tech has excellent dimensional stability, compressive strength, and water resistance properties. R-Tech is an ENERGY STAR qualified insulation and can contribute towards LEED credits. Also available as fanfold insulation.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 8' 0"

Thickness

Standard Sizes: 0-1/2", 0-3/4", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4", 3", 3-1/4", 3-1/2", 3-3/4", 4", 4-1/4", 4-1/2", 4-3/4", 5"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

6.7

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1

Smoke Development

As defined by the ASTM E84 testing standard

150, 300

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

4.93, 5.89, 6.85, 7.81, 8.78, 9.74, 10.7, 11.66, 12.63

Product Density

lbs / ft^3

1

Flame Spread

As defined by the ASTM E84 testing standard

20

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2

Compressive Strength

psi

10
