Fiber-Classic/Smooth-Star Door

THERMA-TRU DOORS

Fiber-Classic/Smooth-Star Door

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Swinging (Hinged) Swinging (Hinged)

Stile & Rail Stile & Rail

Polyurethane Core Polyurethane Core

Stile & Rail Swinging Door Stile & Rail Swinging Door

Fiberglass Fiberglass

Fiberglass Fiberglass

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

From curb appeal to convenience, our Fiber-Classic collections feature wood grains to suit any style. Choose from two wood-grained collections, in a wide variety of door sizes and glass designs, or the perfect fiberglass door to fit a variety of home styles. Smooth-Star is the answer if the best look for your home is a smooth, paintable surface. The more attractive and durable alternative to steel, Smooth-Star fiberglass doors are ready-to-paint (no need to prime!) with crisp, clean contours.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.


Single Door Frame

Width

Min: 2' 1-5/8" Max: 3' 7-5/8"

Height

Standard Sizes: 6' 7-1/2", 6' 10", 7' 2", 8' 2"

Thickness

Standard Sizes: 4-9/16"

Double Door Frame

Width

Min: 4' 2-9/16" Max: 6' 3-1/4"

Height

Standard Sizes: 6' 7-1/2", 6' 10", 7' 2", 8' 2"

Thickness

Standard Sizes: 4-9/16"

Leaf

Width

Height

Standard Sizes: 2' 0", 2' 4", 2' 6", 2' 8", 2' 10", 3' 0", 3' 6", 6' 6", 6' 8", 7' 0", 8' 0"

Thickness

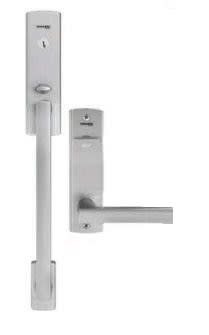

Door Hardware

Forte

Forte



Frame Finish

Acorn

Acorn

Single Color (Interior/Exterior Match)

Leaf Design Style

2010XK-SDL

2010XK-SDL



Leaf Finish

Acorn

Acorn

Single Color (Interior/Exterior Match)

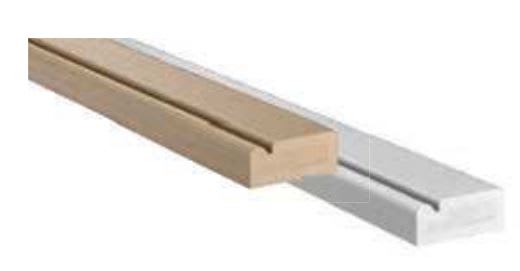

Pannings, Casings or Trims

1-5/8" Florida Brickmould WM176

1-5/8" Florida Brickmould WM176

Exterior

Privacy Glass Option

Avonlea - Decorative Glass

Avonlea - Decorative Glass



Manufacturer Design Notes





Performance Data

U-Factor

The U-value for this door, assuming options are selected that have no glass. If the door comes with glass, see the glazing table for U-values for different glazing options.

Units: Btu / h * ft^2 * °F

0.14

Certifications

NFRC Label

Available

OITC Rating

30-35

OITC Rating

20-25

STC Rating

35-40

STC Rating

30-35

STC Rating

25-30

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

THERMA-TRU DOORS, Fiber-Classic/Smooth-Star Door

Option Features Glass Thickness SHGc (Quarter Lite) U-Value (Quarter Lite) Visible Transmittance (VT) SHGc (Full Lite) U-Value (Full Lite) SHGc (Half Lite) U-Value (Half Lite) SHGc (3/4 Lite) U-Value (3/4 Lite)
Clear/air/clear Glass Type 0.5 0.09 0.09 0.08
E272 / Air / Clear Glass Type 0.5625 0.28 0.17 0.27
E272/air/clear/air/clear Glass Type 1 0.13 0.09 0.21
E366/air/clear Glass Type 0.5 0.18 0.09 0.23

THERMA-TRU DOORS

1750 Indianwood Circle Maumee, Ohio, USA 43537

(800) 843-7628

https://www.thermatru.com

Learn More
