InsulRoof IX

Carlisle Coatings and Waterproofing

InsulRoof IX

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

EPS (Expanded Polystyrene) EPS (Expanded Polystyrene)

Sloped Ceiling Sloped Ceiling

Unfinished Floor Unfinished Floor

Design Options

Product Description

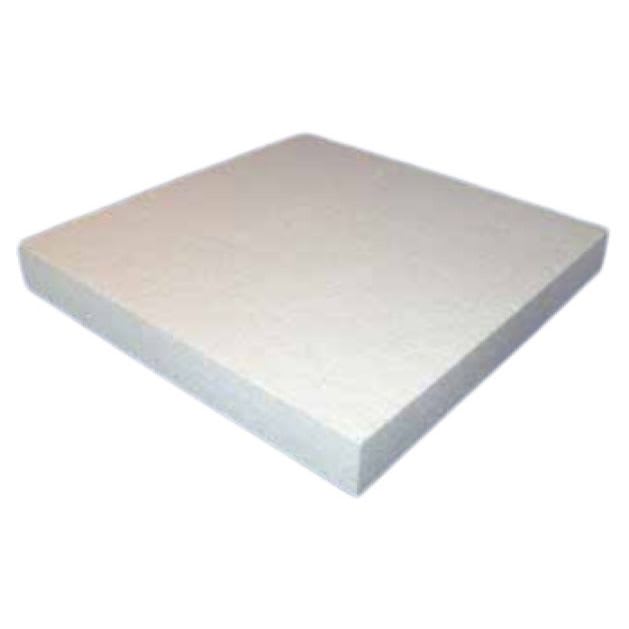

InsulRoof IX (InsulFoam IX) is an engineered insulation consisting of a superior closed-cell, lightweight and resilient expanded polystyrene (EPS). InsulRoof IX meets or exceeds the requirements of ASTM C578, Type IX, Standard Specification for Rigid, Cellular Polystyrene Thermal Insulation. InsulRoof IX has a nominal density of 2.0 lb/ft3. In addition, InsulRoof IX offers a long-term, stable R-value and has excellent dimensional stability, compressive strength and water resistance properties.
InsulRoof IX is available in 4' x 4' and 4' x 8' standard sizes with thickness from ¼" to 40".

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 4' 0", 8' 0"

Thickness

Standard Sizes: 0-1/4", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 6-1/2", 7", 7-1/2", 8", 8-1/2", 9", 9-1/2", 10", 10-1/2", 11", 11-1/2", 12", 12-1/2", 13", 13-1/2", 14", 14-1/2", 15", 15-1/2", 16", 16-1/2", 17", 17-1/2", 18", 18-1/2", 19", 19-1/2", 20", 20-1/2", 21", 21-1/2", 22", 22-1/2", 23", 23-1/2", 24", 24-1/2", 25"

Manufacturer Design Notes

InsulRoof insulations are compatible with both light- and dark-colored single ply membranes, can be applied directly to metal decks, are available in higher compressive strengths, and can be manufactured with fi re-rated facers and coverboards.

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

4.35

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

2

Smoke Development

As defined by the ASTM E84 testing standard

150

Product Density

lbs / ft^3

2

Flame Spread

As defined by the ASTM E84 testing standard

20

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2

Compressive Strength

psi

25
