EcoBatt Insulation

Knauf Insulation

EcoBatt Insulation

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Blanket Insulation Blanket Insulation

Fiberglass Fiberglass

Crawl-Space Ceiling, Exterior Subterranean Wall, Floor, Sloped Ceiling, Wall Crawl-Space Ceiling, Exterior Subterranean Wall, Floor, Sloped Ceiling, Wall

Unfinished Floor Unfinished Floor

Design Options

Product Description

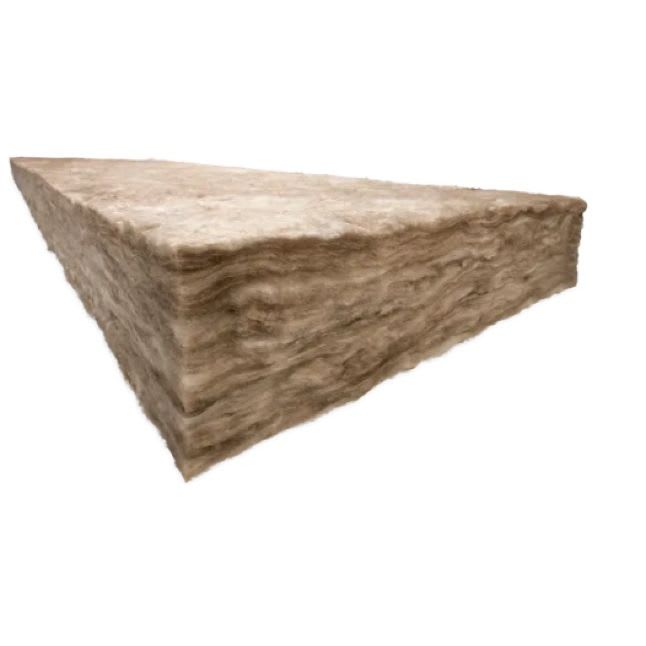

EcoBatt batt insulation is a cost-effective thermal and acoustical barrier for energy-efficient construction. Ecobatt insulation products can be used in new and retrofit wood and metal frame applications in residential, commercial and manufactured housing structures.
Engineered to offer thermal and acoustical properties customers trust. Made with our revolutionary ECOSE technology and validated formaldehyde-free. It's certified to the toughest indoor air quality certification in the industry, GREENGUARD Gold.

Insulation

Width

Standard Sizes: 11", 1' 0", 1' 3", 1' 4", 1' 7-3/4", 1' 11", 1' 11-1/4", 2' 0", 3' 6", 4' 0", 6' 0", 7' 0", 7' 6", 7' 7-1/2", 8' 0"

Height

Thickness

Standard Sizes: 1-1/2", 2-1/4", 2-1/2", 3-1/2", 5-1/2", 6-1/4", 6-1/2", 7", 8", 10", 12", 13-3/4"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

3.33

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Smoke Development

As defined by the ASTM E84 testing standard

50

Flame Spread

As defined by the ASTM E84 testing standard

25

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

5, 7, 11, 13, 19, 20, 22, 25, 30, 38, 49

STC Increase

The Sound Transmission Coefficient increase from adding this insulation to a typical wall assembly

3, 4, 5

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.05

Minimum Recycled

The minimum amount of the product's input materials that come from recycled sources

%

50
