RESISTA Insulation

Firestone Building Products

RESISTA Insulation

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Flat Roof, Sloped Ceiling Flat Roof, Sloped Ceiling

Unfinished Floor Unfinished Floor

Design Options

Product Description

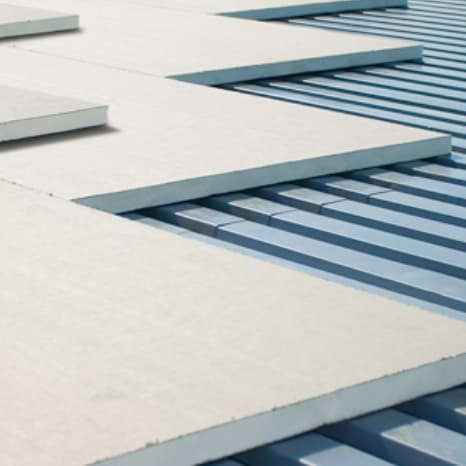

Firestone RESISTA flat and tapered roof insulation consists of a closed-cell polyiso foam core laminated to a specially coated, inorganic, fiberglass facer. RESISTA roof insulation provides outstanding fire, wind and thermal performance for single-ply and modified bitumen commercial roofing applications.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 4' 0", 8' 0"

Thickness

Standard Sizes: 0-1/2", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", 3", 3-1/4", 3-1/2", 3-3/4", 4"

Manufacturer Design Notes

Do not install over wet, damp or uneven substrates.

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

5.7

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

Minimum Recycled

The minimum amount of the product's input materials that come from recycled sources

%

29

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1

Flame Spread

As defined by the ASTM E84 testing standard

50

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

2

Product Density

lbs / ft^3

2

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

2.8, 5.7, 7.1, 8.6, 10, 11.4, 14.4, 17.4, 18.9, 20.5, 22, 23.6

Compressive Strength

psi

20

Smoke Development

As defined by the ASTM E84 testing standard

160, 180
