All Weather Architectural Aluminum

    Series 5000 Casement Window

    $$

    Price categories are relative and based on product material

    Casement

    Window Type

    Aluminum

    Material

    Commercial, Institutional, Residential

    Building Sector

    Available in West

    Made in USA

    Gold

    Updated: 04.04.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Series 5000
    Series 5000
    Series 5000
    Series 5000
    Series 5000

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    The Series 5000 Window System is our most popular and cost-effective thermally enhanced window design.

    Product Description

    Utilizing a pour & debridge thermal break, the Series 5000 offers energy efficiency without sacrificing performance or aesthetics. Utilizing extruded, age-hardened aluminum that boasts a T-6 rating for strength and durability, the Series 5000 window is built to last with a wall thickness that meets or exceeds commercial window standards. Economical, durable, and beautiful, the Series 5000 is the ideal custom window solution for residential and multi-family applications.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 18" 36" 18" 60" 2-1/4"

    Finish Colors

    • Adobe
    • Autumnwood Metallic
    • Bone White
    • Bright White
    • Bronze Anodized
    • Buckhead Brown
    • Candlelight Beige
    • Caramel Latte
    • Cashmere Pearl
    • Champagne Bronze Classic
    • Champagne Gold Classic
    • Chipotle
    • Chocolate Bronze
    • Claypot
    • Clear Anodized
    • Cocoa Bean
    • Cosmic Gray Mica
    • Fairview Taupe
    • Fawn Metallic
    • Galaxy Silver
    • Graphite Gray
    • Harvest Gold Pearl
    • Iced Capuccino
    • Malt
    • Manhattan Beige Pearl
    • Marrakesh Red
    • Metallic Mist
    • Mineral Brown Metallic
    • Mochaccino
    • Moondust Mica
    • Mystic Beige
    • Natural Suede Mica
    • Natural Wicker
    • Platinum
    • Platinum Mica
    • Portabello
    • Renaissance Silver
    • Roasted Red Pepper
    • Satin Nickel
    • Silver Shadow
    • Silversmith Classic
    • Silverstorm
    • Steel City Silver
    • Sterling Silver
    • Summer Suede Metallic
    • Sunlight Silver
    • Vanilla Sand
    • Vintage Bronze
    • White
    • White Ice Metallic

    Hardware

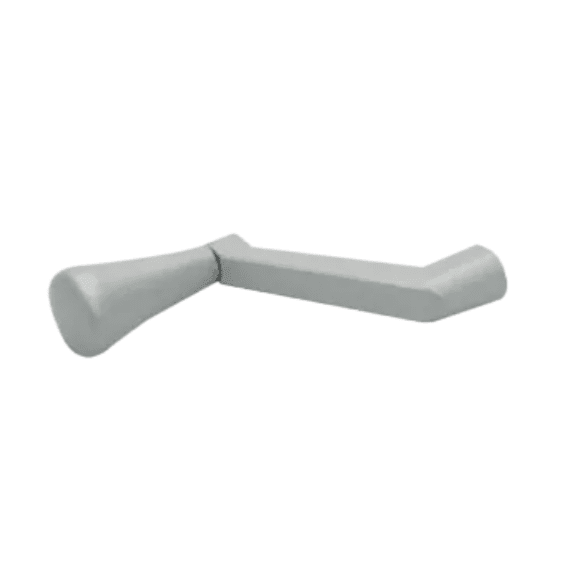

    ADA Crank Handle

    ADA Crank Handle



    ADA Crank Handle

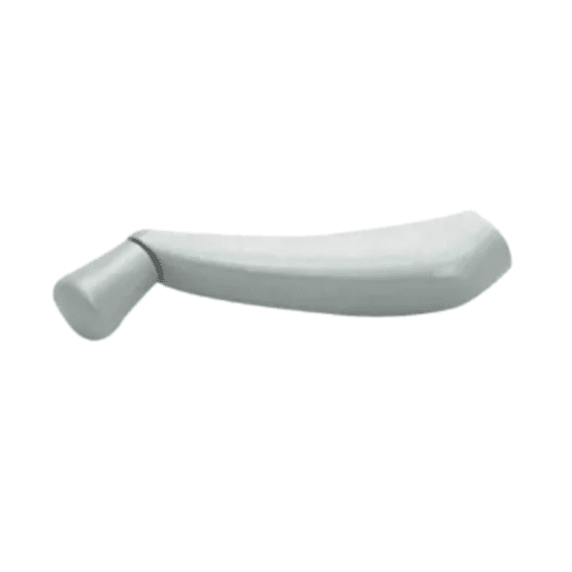

    Contour Crank Handle

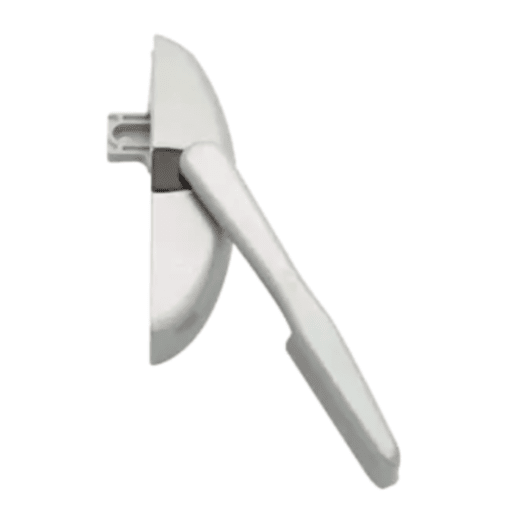

    Contour Locking Handle

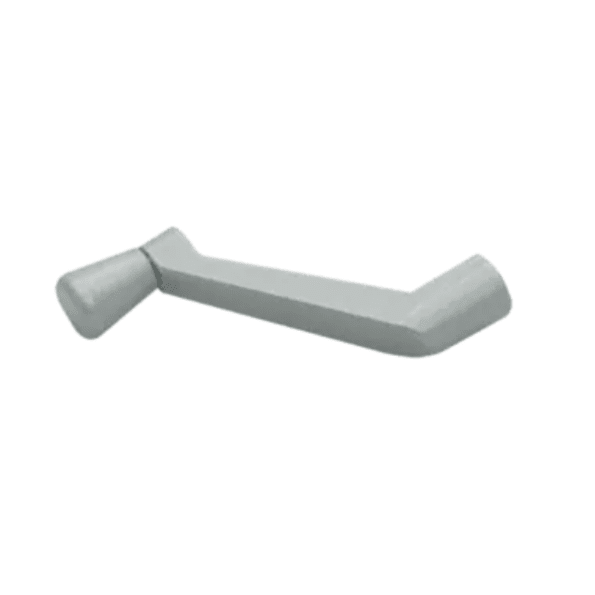

    Crank Handle

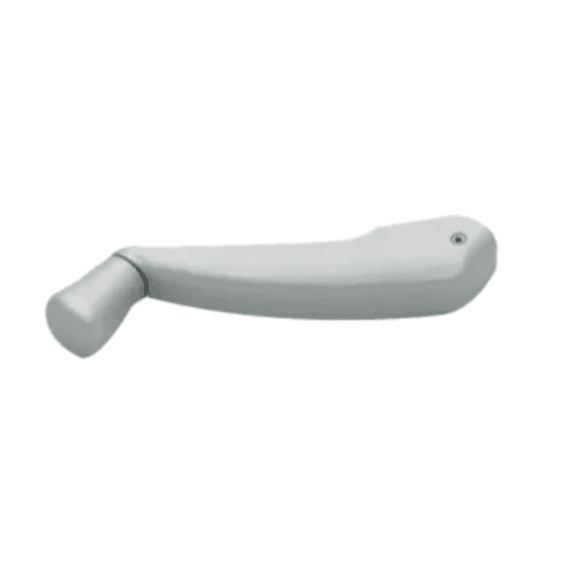

    Folding Crank Handle

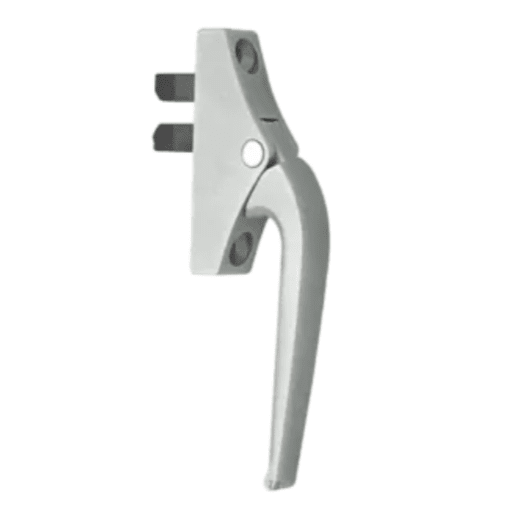

    Linear Multi Point Handle

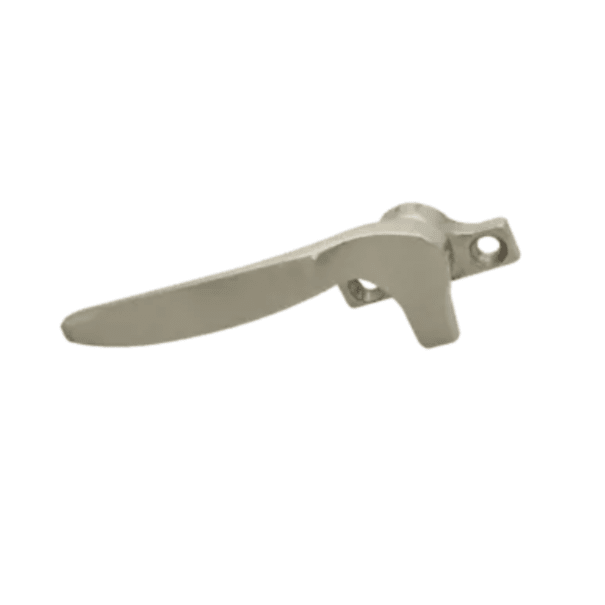

    Melron Cam Handle

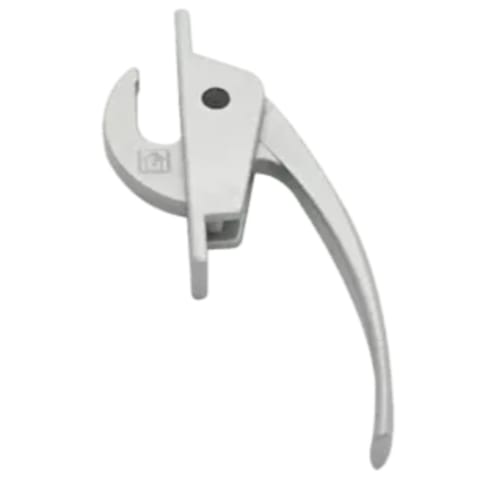

    Roto Locking Handle

    Grid Profiles

    Simulated Divided Lite with Spacer Bars (SDL)

    Simulated Divided Lite with Spacer Bars (SDL)

    Width: 1"

    Simulated Divided Lite with Spacer Bars (SDL)
    True Divided Lite (TDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial

    Decorative Glass

    Etched

    Etched



    Etched
    Frosted
    Textured

    Trims

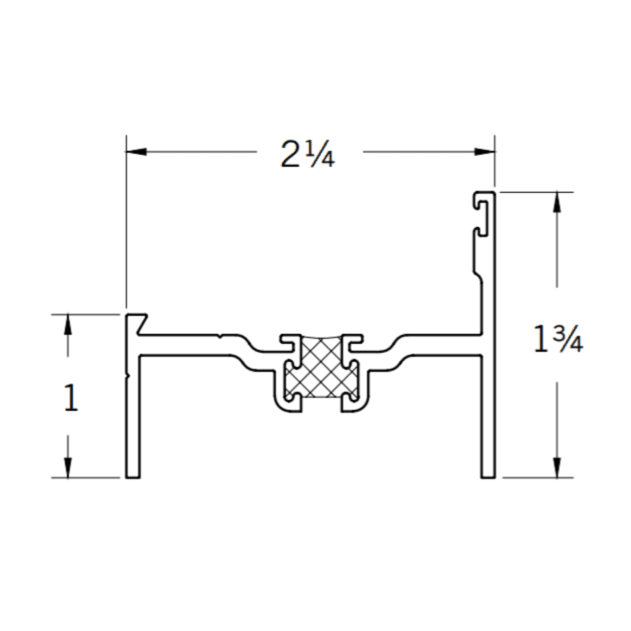

    Equal Leg / Comp Channel

    Equal Leg / Comp Channel



    Equal Leg / Comp Channel

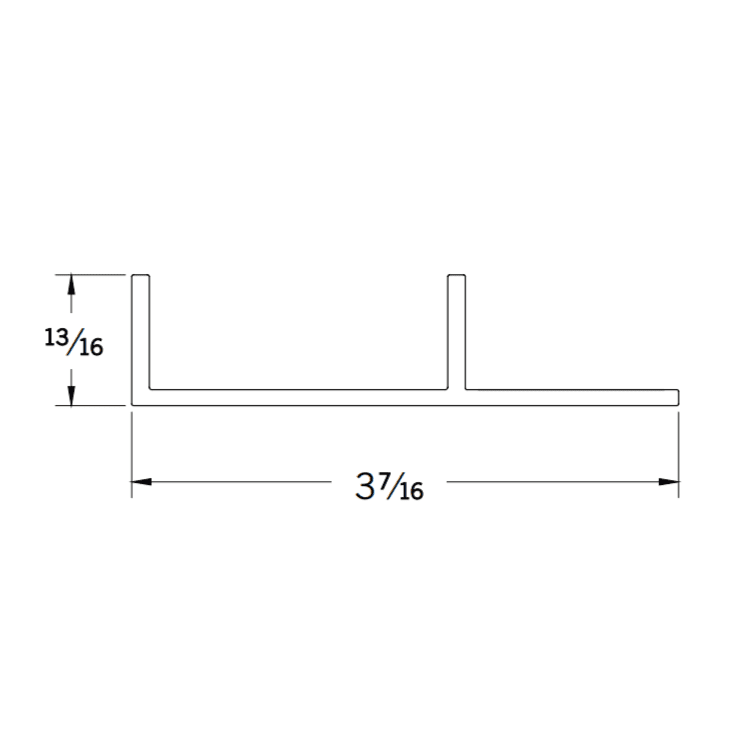

    Equal Leg / F-Clip

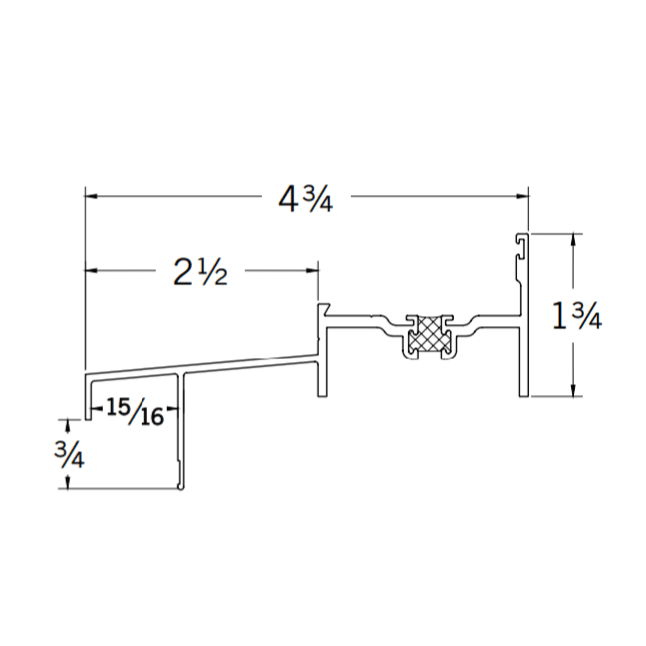

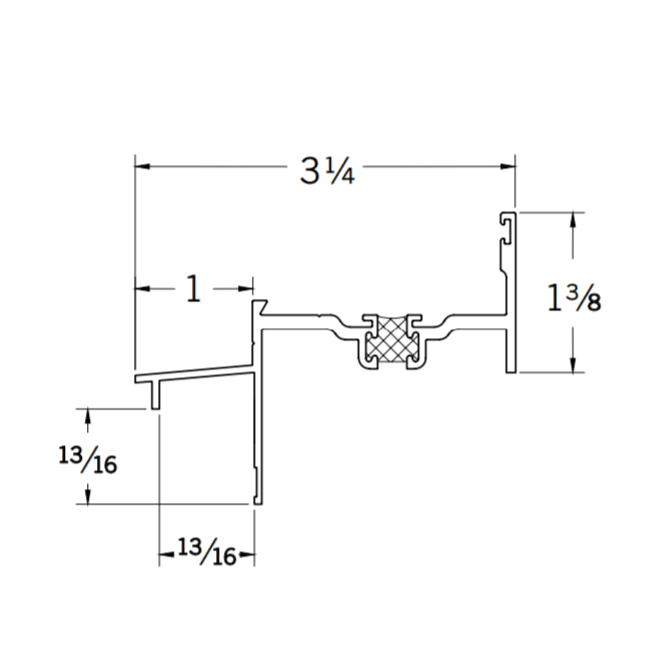

    Panning Nail On
    Standard Nail On

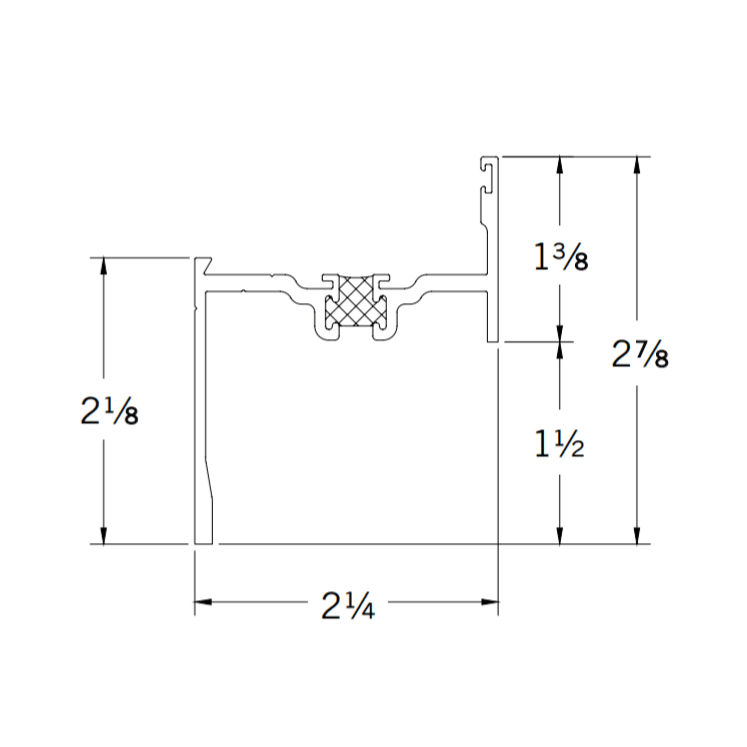

    Z-Bar

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    LC-PG50 - Size Tested: 64 X 132 C-C50 - Size Tested: 64 x 132 (Combination FIxed & Casement Window OO/XO/OO)

    Class
    C (Commercial, 2005 standard)
    Grade
    50
    Test Size
    64" x 132"

    LC-PG50 - Size Tested: 64 X 132 C-C50 - Size Tested: 64 x 132 (Combination FIxed & Casement Window OO/XO/OO)

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    3/16 SB60 / Air / 3/16 Clear (Default) Double Pane - 0.48 0.28 0.49 -
    3/16 SB60 / Argon / 3/16 Clear Double Pane - 0.45 0.27 - -
    3/16 SB70 / Air / 3/16 Clear Double Pane - 0.48 0.2 - -
    3/16 SB70 / Argon / 3/16 Clear Double Pane - 0.45 0.19 - -
    3/16 SB70 / Argon / 3/16 Energy Advantage Double Pane - 0.41 0.19 - -

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.41 0.48

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.19 0.28
