Andersen Windows, Inc.

    E Series Double Hung Window

    $$

    Price categories are relative and based on product material

    Double Hung

    Window Type

    Aluminum-Clad Wood

    Material

    Commercial, Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.08.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    E Series
    E Series
    E Series
    E Series
    E Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Our E-Series windows & patio doors, as part of the Architectural Collection, are made to your exact specifications for unmatched flexibility and design freedom.

    Product Description

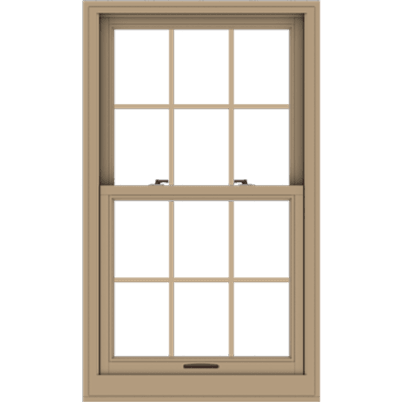

    E-Series double-hung windows have two operating sash that move up and down allowing for ventilation on the top, bottom or both. The sash tilt in for easy cleaning from the inside of your home. Made of wood protected by an aluminum exterior, it's our fully customizable double-hung window.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 20" 60" 36" 120" 2-7/8"

    Finish Colors

    • Abalone
    • Acorn
    • Alder
    • Anodized Silver
    • Aquamarine
    • Autumn Oak
    • Balsa White
    • Billiard Green
    • Bing Cherry
    • Birch Bark
    • Black
    • Blue Denim
    • Bourbon
    • Camel
    • Canvas
    • Cardinal
    • Caribbean Blue
    • Champagne
    • Cherry
    • Cinnamon
    • Cinnamon Toast
    • Clay Conyon
    • Clear
    • Clear Coat
    • Cocoa Bean
    • Coffee Bean
    • Colony White
    • Copper
    • Country Blue
    • Dark Ash
    • Dark Bronze
    • Dove Grey
    • Espresso
    • Fire Engine Red
    • Flagstone
    • Forest Green
    • Golden Hickory
    • Harbor Mist
    • Harvest Gold
    • Hickory
    • Honey
    • Hot Chocolate
    • Light Bronze
    • Mahogany
    • Mallard Green
    • Maple
    • Maple Syrup
    • Medium Bronze
    • Mixed Grain Douglas Fir
    • Mocha
    • Moody Blue
    • Moss
    • Mystic Grey
    • Oak
    • Olive
    • Patina
    • Pebble Tan
    • Pine
    • Prairie Grass
    • Primed
    • Red Rock
    • Russet
    • Sage
    • Sandtone
    • Sierra Bronze
    • Sky Blue
    • Slate
    • Smokey Gray
    • Spearmint
    • Stormy Blue
    • Terratone
    • Vertical Grain Douglas Fir
    • Walnut
    • Watercolour Blue
    • Wheat
    • White
    • Yorktown Pewter

    Custom Colors Available

    Hardware

    Lock and Keeper

    Lock and Keeper



    Lock and Keeper

    Grid Profiles

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 1"

    Grilles Between Glass (GBG)
    Removable Interior Grid
    Simulated Divided Lite (SDL)
    True Divided Lite (TDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Custom
    Diamond
    Prairie

    Decorative Glass

    Colored

    Colored



    Colored
    Frosted
    Obscured
    Textured
    Translucent

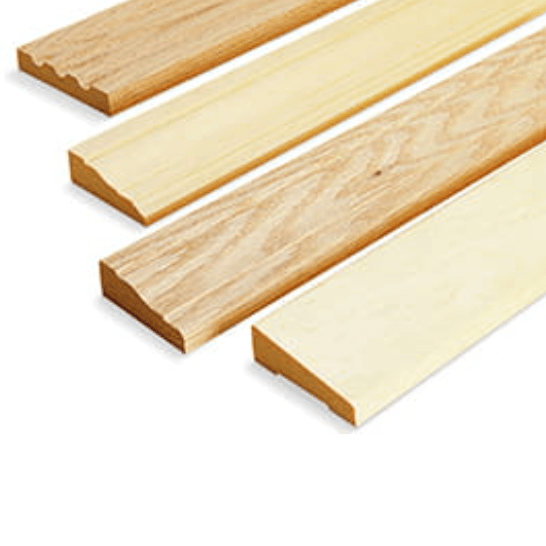

    Trims

    1/2" Fluted Casing

    1/2" Fluted Casing



    1/2" Fluted Casing
    11/16"  Ranch Casing
    11/16" Colonial Casing
    2-1/4" Colonial Casing
    2-1/4" Ranch Casing

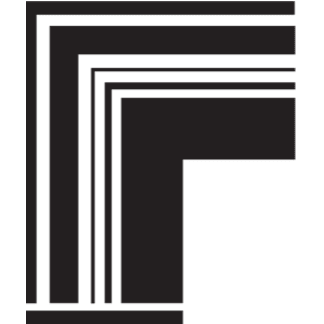

    2" Brick Mould
    2" Brick Mould w/ Sill Nose

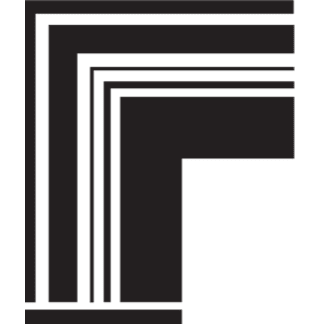

    2" Ovolo Brick Mould
    2" Ovolo Brick Mould w/ Sill Nose
    3-1/2" Backband and Bead Casing

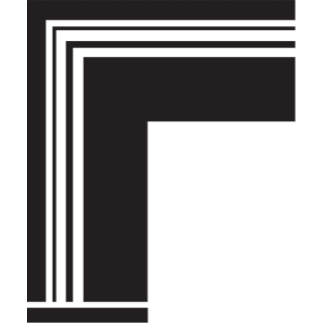

    3-1/2" Backband and Bead Casing w/ Sill Nose
    3-1/2" Brick Mould

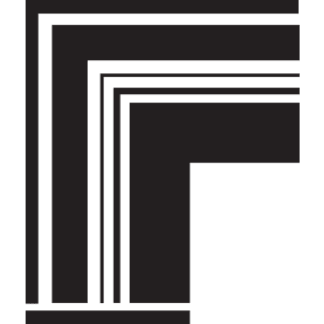

    3-1/2" Brick Mould w/ Sill Nose
    3-1/2" Flat Casing
    3-1/2" Flat Casing w/ Sill Nose
    3-1/4" Fluted Casing

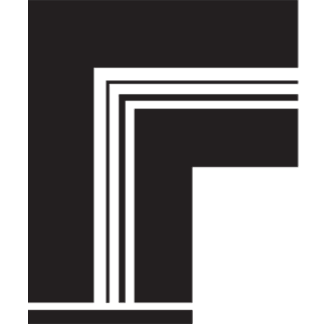

    5-1/2" Flat Casing
    5-1/2" Flat Casing w/ Sill Nose

    Composition

    Bay and Bow

    Bay and Bow



    Bay and Bow
    Common Jambs

    Add-Ons

    Blinds

    Blinds



    Blinds
    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    LC (Light Commercial)
    Grade
    55
    Test Size
    40" x 84"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    55
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    Low-E4® Glass Double Pane, Low-E Coating North Central 0.3 0.3 0.51 -
    Low-E4® Glass with HeatLock Double Pane, Low-E Coating North Central, Northern 0.27 0.29 0.5 -
    Low-E4® Sun Glass Double Pane, Low-E Coating Southern 0.31 0.18 0.28 -
    PassiveSun® Glass Double Pane, Low-E Coating - 0.31 0.5 0.56 -
    SmartSun™ Glass Double Pane, Low-E Coating, UV Filtering North Central, South Central, Southern 0.3 0.2 0.46 -
    SmartSun™ Glass with HeatLock Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.26 0.19 0.45 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.26 0.31

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.18 0.5
