Cascadia Windows Ltd.

    Universal Series Casement Window

    $$$

    Price categories are relative and based on product material

    Casement

    Window Type

    Fiberglass

    Material

    Commercial, Institutional, Residential

    Building Sector

    Available in All of US, Canada

    Made in Canada

    Energy Star

    Gold

    Updated: 06.03.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Universal Series
    Universal Series
    Universal Series
    Universal Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Universal Series improves on our existing lines in every way. It is the result of combining years of experience and cutting edge innovation.

    Product Description

    Our newest product is the Universal Series line of windows and doors. Offering one frame in place of many, the Universal Series improves on our existing lines in every way. It is the result of combining years of experience and cutting edge innovation. Commercial-grade, all-fiberglass, complete window and door line - now Passive House Certified in the USA (PHIUS), Canada and Internationally (PHI).

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 18-3/4" 36" 22-5/8" 72" 4-1/2"

    Finish Colors

    • Anthracite - 303
    • Cascadia Black - 200
    • Clay - 173
    • Commercial Brown - 872
    • Light Grey - 310
    • Lighthouse Red - 511
    • Metallic Champagne - 341
    • Rainware White - 102
    • Slate Grey - 335
    • Wineberry - 591

    Custom Colors Available

    Hardware

    Crank Handle

    Crank Handle



    Crank Handle
    Multi-Point Lock

    Grid Profiles

    Simulated Divided Lite (SDL)

    Simulated Divided Lite (SDL)

    Width: 5/8"

    Simulated Divided Lite (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Farmhouse

    Trims

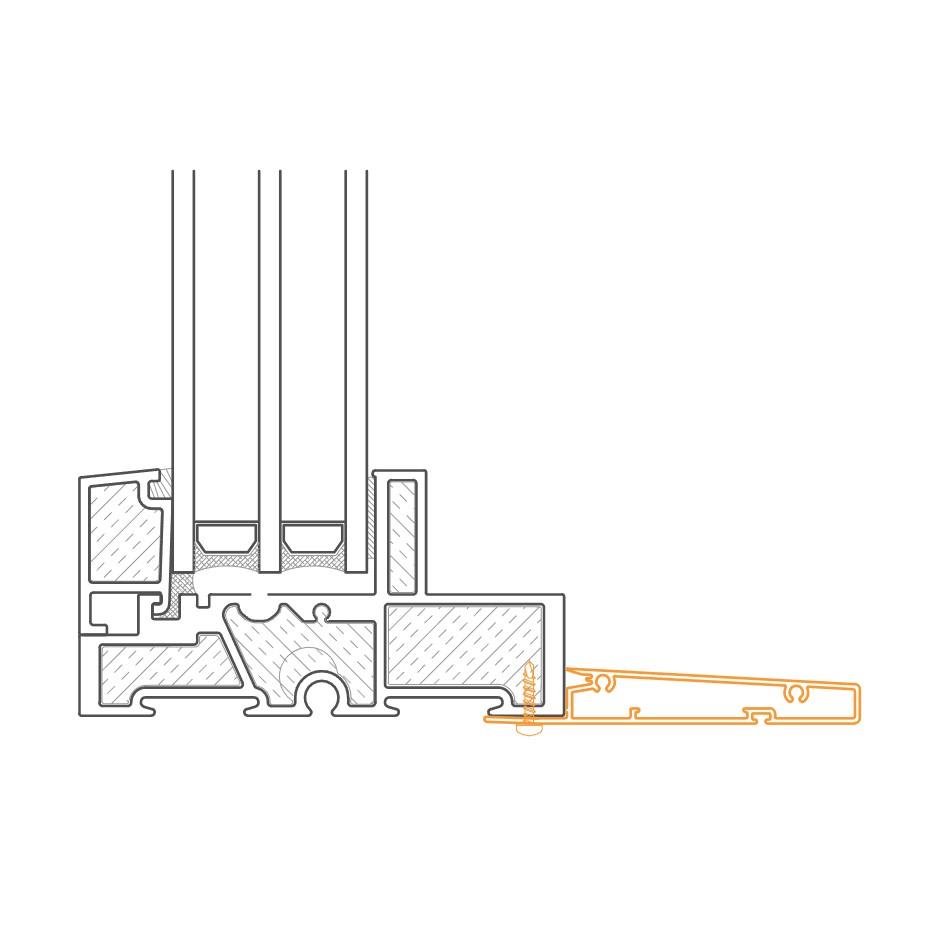

    1 5/8" Exterior Jamb Extension

    1 5/8" Exterior Jamb Extension



    1 5/8" Exterior Jamb Extension
    3 1/4" Exterior Jamb Extension

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    AW-PG60-C @ 36" x 60" CW-PG60-C @ 36" x 60"

    Class
    AW (Architectural)
    Grade
    60
    Test Size
    36" x 60"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    60
    10 20 30 40 50 60 70 80 90 100
    -

    AW-PG60-C @ 36" x 60" CW-PG60-C @ 36" x 60"

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    Premium Double 180/i89 with Stainless Steel Spacer Double Pane, Low-E Coating Northern 0.22 0.62 0.77 -
    Premium Double 270/i89 with Stainless Steel Spacer Double Pane, Low-E Coating, UV Filtering North Central, Northern 0.21 0.36 0.69 -
    Premium Double 340/i89 with Stainless Steel Spacer Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.21 0.17 0.38 -
    Premium Double 366/i89 with Stainless Steel Spacer Double Pane, Low-E Coating North Central, Northern 0.21 0.27 0.63 -
    Premium Triple 180/180/i89 with Stainless Steel Spacer Low-E Coating, Triple Pane Northern 0.16 0.53 0.68 -
    Premium Triple 180/180/i89 with TriSeal Steel Spacer Low-E Coating, Triple Pane Northern 0.16 0.53 0.68 -
    Premium Triple 270/180/i89 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern 0.16 0.32 0.6 -
    Premium Triple 270/180/i89 with TriSeal Steel Spacer Low-E Coating, Triple Pane North Central, Northern 0.15 0.32 0.6 -
    Premium Triple 340/180/i89 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.16 0.15 0.33 -
    Premium Triple 340/180/i89 with TriSeal Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.15 0.15 0.33 -
    Premium Triple 366/180/i89 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.16 0.24 0.56 -
    Premium Triple 366/180/i89 with TriSeal Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.15 0.24 0.56 -
    Standard Double 180 (#3) with Stainless Steel Spacer Double Pane, Low-E Coating Northern 0.24 0.86 0.79 -
    Standard Double 270 (#2) with Stainless Steel Spacer Double Pane, Low-E Coating North Central, Northern 0.24 0.37 0.7 -
    Standard Double 340(#2) with Stainless Steel Spacer Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.24 0.18 0.39 -
    Standard Double 366(#2) with Stainless Steel Spacer Double Pane, Low-E Coating North Central, Northern 0.24 0.27 0.65 -
    Standard Triple 180/180 with Stainless Steel Spacer Low-E Coating, Triple Pane Northern 0.17 0.56 0.7 -
    Standard Triple 180/180 with TriSeal Spacer Low-E Coating, Triple Pane Northern 0.16 0.56 0.7 -
    Standard Triple 270/180 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern 0.17 0.33 0.62 -
    Standard Triple 270/180 with TriSeal Spacer Low-E Coating, Triple Pane North Central, Northern 0.16 0.33 0.62 -
    Standard Triple 340/180 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.17 0.16 0.34 -
    Standard Triple 340/180 with TriSeal Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.16 0.16 0.34 -
    Standard Triple 366/180 w/ Stainless Steel Spacer and Capillary Tubes Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.18 0.25 0.57 -
    Standard Triple 366/180 with Stainless Steel Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.17 0.25 0.57 -
    Standard Triple 366/180 with TriSeal Spacer Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.16 0.25 0.57 -

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.15 0.24

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.15 0.86
