Comfort Line Ltd.

    2100 Series Awning Window

    $$

    Price categories are relative and based on product material

    Awning

    Window Type

    Fiberglass

    Material

    Commercial, Residential

    Building Sector

    Available in All of US

    Made in USA

    Energy Star

    Gold

    Updated: 01.30.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    2100 Series
    2100 Series
    2100 Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Protect your home form the elements with our timeless 2100 Series projecting windows.

    Product Description

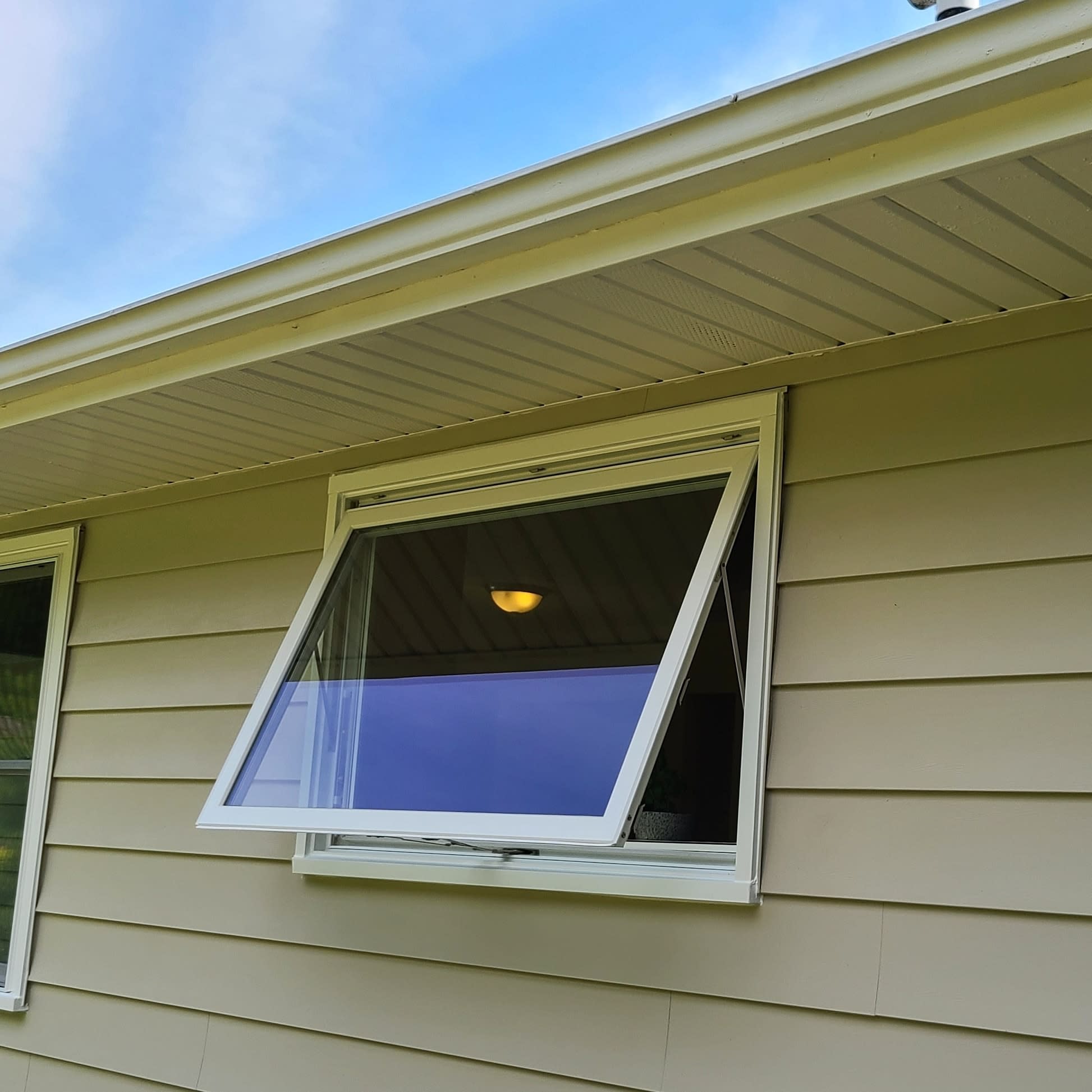

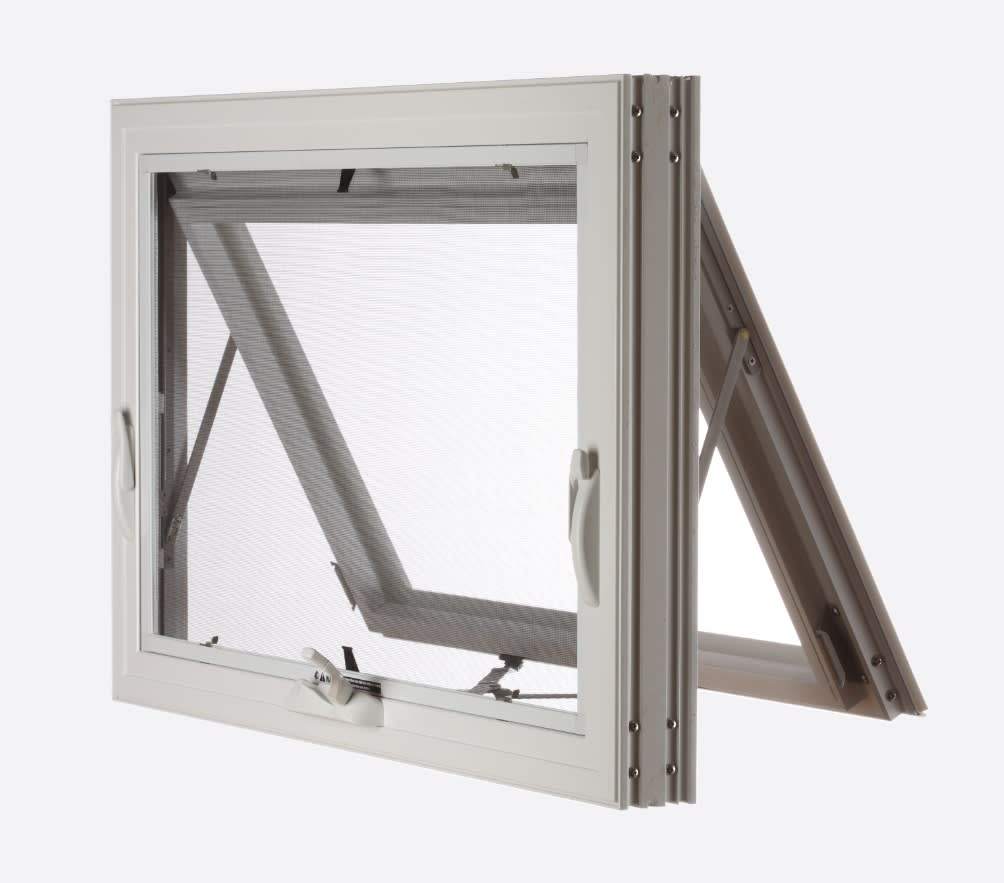

    Awning windows are a perfect choice for optimal air ventilation, and the only window style that lets you enjoy a breeze even when it’s raining. With the sash hinged at the top, it projects out when opened protecting your home from the rain while allowing maximum airflow.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 14" 60" 16" 60" 3-1/4"

    Finish Colors

    • Almond
    • Antique White
    • Black Magic
    • Cobblestone
    • Dark Bronze
    • Dove White
    • Grizzle Grey
    • Hunt Club Green

    Hardware Finishes

    • Almond
    • Black
    • Bright Chrome
    • Bronze
    • Classic Gold
    • Oil Rubbed Bronze
    • Satin Nickel
    • White

    Hardware

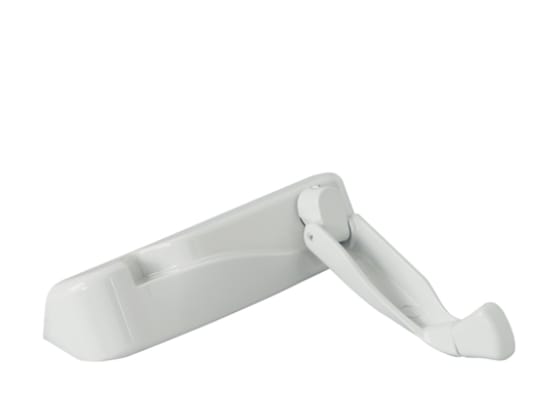

    Encore Awning Operator

    Encore Awning Operator



    Encore Awning Operator
    Operator Cover & Crank Handle

    Grid Profiles

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 7/8"

    Grilles Between Glass (GBG)
    Simulated Divided Lite (SDL)

    Grid Patterns

    Cathedral

    Cathedral



    Cathedral
    Colonial
    Custom
    Diamond
    Farmhouse
    Prairie

    Decorative Glass

    Colored

    Colored



    Colored
    Etched

    Trims

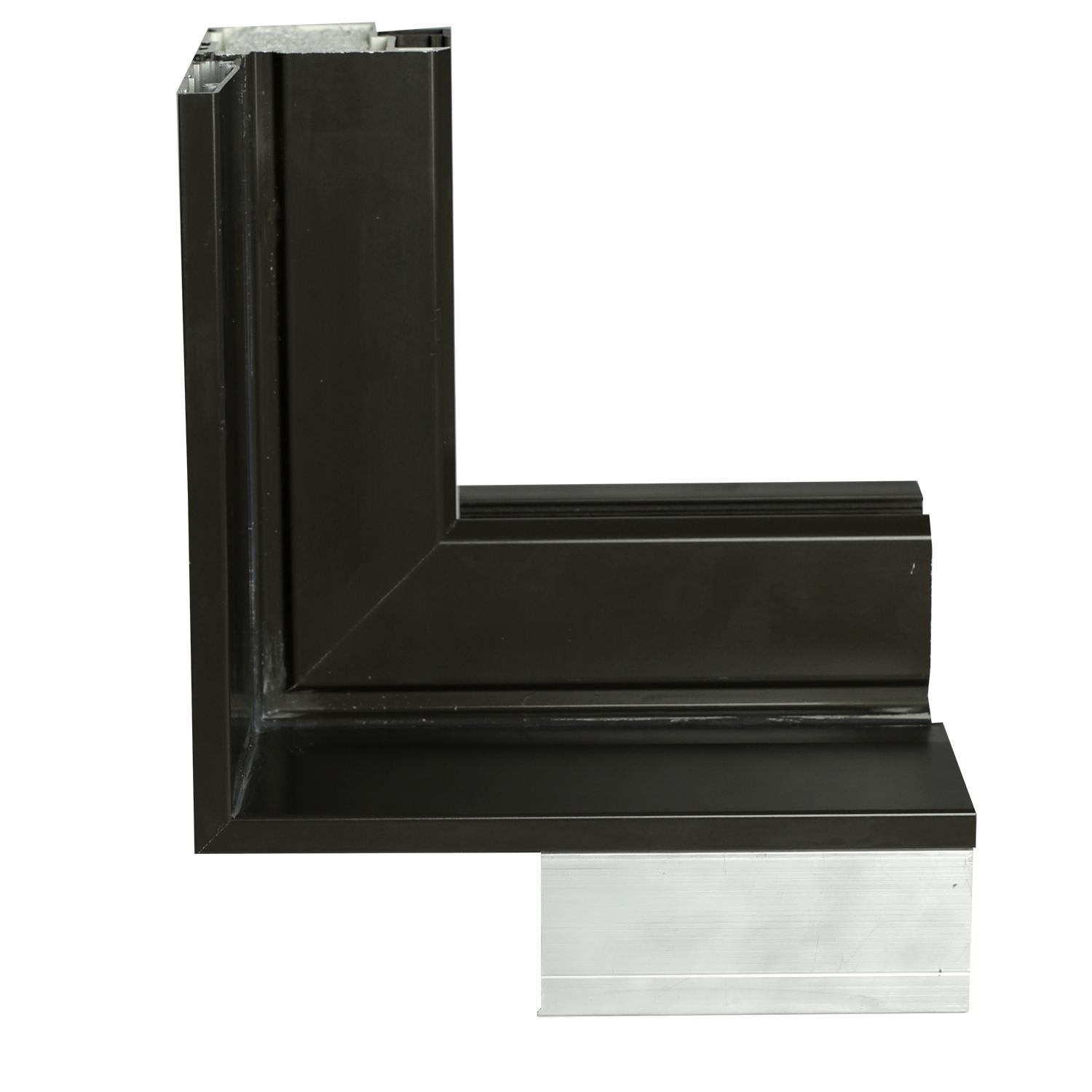

    2 1/4 Panning

    2 1/4 Panning



    2 1/4 Panning
    3 1/4 Panning
    Sill Extender

    Composition

    Bay and Bow

    Bay and Bow



    Bay and Bow
    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    CW (Commercial)
    Grade
    80
    Test Size
    60" x 40"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    80
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    1/4" Clear - Argon - 1/4" LoE-180 Argon, Double Pane, Low-E Coating Northern 0.28 0.43 0.51 -
    1/4" LoE-272 - Argon - 1/4" Clear Argon, Double Pane, Low-E Coating North Central, Northern 0.27 0.27 0.46 -
    1/4" LoE-366 - Argon - 1/4" Clear Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.27 0.19 0.42 -
    1/8" Clear - Argon - 1/8" LoE-180 Argon, Double Pane, Low-E Coating Northern 0.28 0.46 0.52 -
    1/8" LoE-180 - Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern 0.19 0.38 0.46 -
    1/8" LoE-180 - Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern 0.23 0.38 0.46 -
    1/8" LoE-180 - Krypton - 1/8" Clear - Krypton- 1/8" LoE-180 Krypton, Low-E Coating, Triple Pane North Central, Northern 0.17 0.38 0.46 -
    1/8" LoE-272 - Argon - 1/8" Clear Argon, Double Pane, Low-E Coating North Central, Northern 0.27 0.28 0.48 -
    1/8" LoE-272- Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.19 0.25 0.42 -
    1/8" LoE-272- Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.23 0.25 0.42 -
    1/8" LoE-272- Krypton- 1/8" Clear - Krypton- 1/8" LoE-180 Krypton, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.17 0.25 0.42 -
    1/8" LoE-366 - Argon - 1/8" Clear Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.27 0.19 0.43 -
    1/8" LoE-366- Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.19 0.17 0.38 -
    1/8" LoE-366- Argon - 1/8" Clear - Argon - 1/8" LoE-180 Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.22 0.17 0.38 -
    1/8" LoE-366- Krypton- 1/8" Clear - Krypton- 1/8" LoE-180 Krypton, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.17 0.17 0.38 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.17 0.28

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.17 0.46

    Comfort Line Ltd.

    5500 Enterprise Blvd. Toledo, OH 43612

    (419) 729-8520

    www.fiberframe.com
