JELD-WEN, Inc.

    Siteline Clad Series Casement Window

    $$$

    Price categories are relative and based on product material

    Casement

    Window Type

    Aluminum-Clad Wood

    Material

    Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.04.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

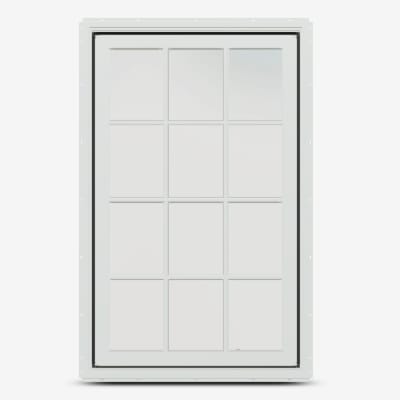

    Siteline Clad Series
    Siteline Clad Series
    Siteline Clad Series
    Siteline Clad Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    JELD-WEN® Siteline® Wood and Clad-Wood windows showcase elegance, thoughtful engineering, and long-lasting performance.

    Product Description

    The Siteline casement features a recessed sash for heightened detail and energy efficiency. Built with AuraLast pine, with extensive options for colours, finishes, grilles and glass.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 18" 36" 18" 84" -

    Finish Colors

    • Admiral
    • Alder Americano
    • Alder Charcoal
    • Alder Clear Lacquer
    • Alder Cordovan
    • Alder Fruitwood
    • Alder Kodiak
    • Alder Walnut
    • AuraLast Pine Americano
    • AuraLast Pine Charcoal
    • AuraLast Pine Clear Lacquer
    • AuraLast Pine Cordovan
    • AuraLast Pine Fruitwood
    • AuraLast Pine Kodiak
    • AuraLast Pine Walnut
    • Black
    • Bone White
    • Brilliant White
    • Chestnut Bronze
    • Cocoa
    • Cranberry
    • Dark Chocolate
    • Desert Sand
    • Dove
    • Fir Americano
    • Fir Charcoal
    • Fir Clear Lacquer
    • Fir Cordovan
    • Fir Fruitwood
    • Fir Kodiak
    • Fir Walnut
    • Flagstone
    • French Vanilla
    • Gunmetal
    • Hartford Green
    • Heirloom White
    • Hunter Green
    • Ivory
    • Mesa Red
    • Mocha Cream
    • Moss
    • Navy
    • Sea Foam
    • Silver
    • Smoke
    • Steele Grey
    • Stone
    • Stormy
    • Surf

    Custom Colors Available

    Hardware Finishes

    • Antique Brass
    • Black
    • Brushed Chrome
    • Chestnut Bronze
    • Desert Sand
    • Oil-Rubbed Bronze
    • Polished Brass
    • Satin Nickel
    • White

    Hardware

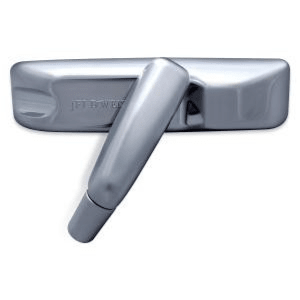

    Folding Handle

    Folding Handle



    Folding Handle
    Push-Out Handle

    Grid Profiles

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 11/16", 1"

    Grilles Between Glass (GBG)
    Simulated Divided Lite (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Diamond
    Prairie

    Decorative Glass

    Colored

    Colored



    Colored
    Etched
    Frosted
    Textured
    Translucent

    Trims

    3-1/2" Flat Casing

    3-1/2" Flat Casing



    3-1/2" Flat Casing
    Adams Casing
    Brickmould

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Blinds

    Blinds



    Blinds
    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    LC (Light Commercial)
    Grade
    60
    Test Size
    28" x 84"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    60
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    SunFlow Low-E Coating - 0.32 0.46 0.53 -
    SunFlow Argon Argon, Double Pane, Low-E Coating Northern 0.29 0.46 0.53 -
    SunFlow Argon Clear Argon, Low-E Coating, Triple Pane North Central, Northern 0.19 0.38 0.47 -
    SunResist Double Pane, Low-E Coating Southern 0.31 0.19 0.43 -
    SunResist Argon Argon, Double Pane, Low-E Coating North Central, South Central, Southern 0.28 0.19 0.43 -
    SunResist with HeatSave Argon Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.24 0.19 0.42 -
    SunStable Double Pane, Low-E Coating Southern 0.31 0.25 0.47 -
    SunStable Argon Argon, Double Pane, Low-E Coating North Central, South Central, Southern 0.28 0.25 0.47 -
    SunStable Argon Clear Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.22 0.23 0.43 -
    SunStable with HeatSave Argon Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.25 0.25 0.46 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.19 0.32

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.19 0.46
