Lincoln Windows

    Clad Series Awning Window

    $

    Price categories are relative and based on product material

    Awning

    Window Type

    Aluminum-Clad Wood

    Material

    Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.06.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Clad Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Lincoln delivers plenty of value to the market with a wide array of products constructed with strong architectural characteristics.

    Product Description

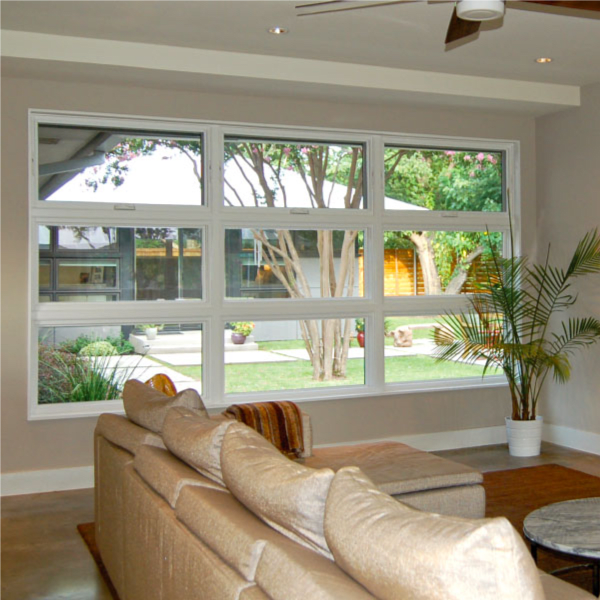

    As part of Lincoln casement family, standard crank-out awning windows look great and perform efficiently year-after-year. Awnings match casement/studio profiles, are stackable and can be mulled above (as a transom) or below in multiple combinations. Awning characteristics allow venting from the bottom and will shed light rain. Sash locks, located on the side jambs, pull sash tight to the frame weatherstripping and make standard awning units very secure against turbulent weather.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 18" 60" 18" 60" -

    Finish Colors

    • Adobe (Standard)
    • Alder
    • Auburn
    • Battleship Grey (Feature)
    • Bay Leaf (Feature)
    • Beige (Standard)
    • Berry Red (Feature)
    • Black
    • Black (Standard)
    • Brick Red (Feature)
    • Bronze (Standard)
    • Caribbean (Feature)
    • Chamois (Feature)
    • Champagne
    • Charcoal (Feature)
    • Cherry
    • Chili Powder (Feature)
    • Chocolate Malt (Feature)
    • Clear
    • Cocoa (Feature)
    • Coffee Bean (Standard)
    • Crimson (Feature)
    • Dark Bronze
    • Dove Grey (Feature)
    • Driftwood (Feature)
    • Fairway (Feature)
    • FIr
    • Glacier (Feature)
    • Hampton Brown (Feature)
    • Hartford Green (Standard)
    • Ink (Feature)
    • Ivory (Standard)
    • Light Bronze
    • Linen (Feature)
    • Mahogany
    • Medium Bronze
    • Merlot (Feature)
    • Military Blue (Feature)
    • Night Sky (Feature)
    • Patina Green (Feature)
    • Pine
    • Pinecone (Feature)
    • Pueblo Tan (Feature)
    • Red Oak
    • Rosewood (Feature)
    • Sagebrush (Feature)
    • Sandstone (Feature)
    • Santa Fe (Feature)
    • Sea Foam (Feature)
    • Sierra Tan (Feature)
    • Slate (Feature)
    • Spice (Feature)
    • Steel Blue (Feature)
    • Stone Grey (Feature)
    • Thistle (Feature)
    • Toffee (Feature)
    • White
    • White
    • White (Standard)
    • Wild Ivy (Feature)
    • Winter White (Feature)

    Custom Colors Available

    Hardware Finishes

    • Black
    • Bronze
    • Coppertone
    • Faux Bronze
    • Oil-Rubbed Brass
    • Polished Brass
    • Satin Nickel
    • White

    Hardware

    Contempo Handle

    Contempo Handle



    Contempo Handle
    Crank Handle and Lever Lock
    Folding Handle

    Grid Profiles

    Removable Interior Grid

    Removable Interior Grid

    Width: 5/8", 7/8", 1-1/8"

    Removable Interior Grid
    Simulated Divided Lite (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Custom
    Diamond
    Prairie

    Decorative Glass

    Colored

    Colored



    Colored
    Frosted
    Textured
    Translucent

    Trims

    1" Box Sill Nosing

    1" Box Sill Nosing



    1" Box Sill Nosing

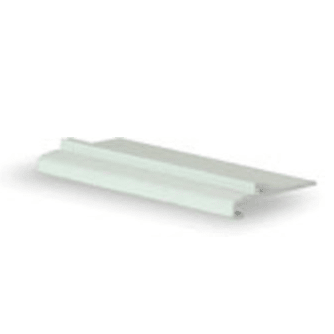

    1/4" Sill Nosing
    2" Brickmould
    4" Brickmould
    4" Flat Casing
    7/8" Sill Nosing
    Bull Nosing
    Colonial
    F-131
    GR-499
    Princeton
    Ranch
    RB3-Howell
    WM-356
    WP-442
    WP-444
    WP-445

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    LC (Light Commercial)
    Grade
    50
    Test Size
    48" x 60"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    50
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    LowE Clear IG Air Double Pane, Low-E Coating - 0.33 0.29 0.49 -
    LowE Clear IG Argon Argon, Double Pane, Low-E Coating North Central 0.3 0.29 0.49 -
    LowE-180 Clear IG Argon Argon, Double Pane, Low-E Coating - 0.31 0.47 0.54 -
    LowE-272 Clear IG Air Low-E Coating, Triple Pane North Central, Northern 0.22 0.26 0.43 -
    LowE-272 Clear IG Air Double Pane, Low-E Coating North Central 0.29 0.28 0.48 -
    LowE-272 Clear IG Argon Argon, Low-E Coating, Triple Pane North Central, Northern 0.2 0.26 0.43 -
    LowE-272 Clear IG Argon Argon, Double Pane, Low-E Coating North Central, Northern 0.27 0.28 0.48 -
    LowE-366 Clear IG Air Double Pane, Low-E Coating Southern 0.32 0.19 0.44 -
    LowE-366 Clear IG Argon Argon, Double Pane, Low-E Coating North Central, South Central, Southern 0.29 0.19 0.44 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.2 0.33

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.19 0.47
