Lincoln Windows

    Clad Series Double Hung Window

    $

    Price categories are relative and based on product material

    Double Hung

    Window Type

    Aluminum-Clad Wood

    Material

    Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.01.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Clad Series

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Lincoln delivers plenty of value to the market with a wide array of products constructed with strong architectural characteristics.

    Product Description

    This arrangement is an ageless window type that offers some unique advantages. Sash tilt in for easy cleaning, ventilation is improved by opening the top and bottom sash equally and classic historical appeal is achieved when using Lincoln double hungs. Our standard window is equipped with advanced energy saving features. For example, Lincoln double hung checkrails incorporate the use of interlocks, weatherstrip and high-quality sash locks for a precision fit.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 21-3/8" 45-3/8" 32-1/2" 92-1/2" -

    Finish Colors

    • Adobe (Standard)
    • Alder
    • Auburn
    • Battleship Grey (Feature)
    • Bay Leaf (Feature)
    • Beige (Standard)
    • Berry Red (Feature)
    • Black
    • Black (Standard)
    • Brick Red (Feature)
    • Bronze (Standard)
    • Caribbean (Feature)
    • Chamois (Feature)
    • Champagne
    • Charcoal (Feature)
    • Cherry
    • Chili Powder (Feature)
    • Chocolate Malt (Feature)
    • Clear
    • Cocoa (Feature)
    • Coffee Bean (Standard)
    • Crimson (Feature)
    • Dark Bronze
    • Dove Grey (Feature)
    • Driftwood (Feature)
    • Fairway (Feature)
    • FIr
    • Glacier (Feature)
    • Hampton Brown (Feature)
    • Hartford Green (Standard)
    • Ink (Feature)
    • Ivory (Standard)
    • Light Bronze
    • Linen (Feature)
    • Mahogany
    • Medium Bronze
    • Merlot (Feature)
    • Military Blue (Feature)
    • Night Sky (Feature)
    • Patina Green (Feature)
    • Pine
    • Pinecone (Feature)
    • Pueblo Tan (Feature)
    • Red Oak
    • Rosewood (Feature)
    • Sagebrush (Feature)
    • Sandstone (Feature)
    • Santa Fe (Feature)
    • Sea Foam (Feature)
    • Sierra Tan (Feature)
    • Slate (Feature)
    • Spice (Feature)
    • Steel Blue (Feature)
    • Stone Grey (Feature)
    • Thistle (Feature)
    • Toffee (Feature)
    • White
    • White
    • White (Standard)
    • Wild Ivy (Feature)
    • Winter White (Feature)

    Custom Colors Available

    Hardware Finishes

    • Black
    • Bronze
    • Coppertone
    • Faux Bronze
    • Oil-Rubbed Brass
    • Polished Brass
    • Satin Nickel
    • White

    Hardware

    Sash Lift Handle

    Sash Lift Handle



    Sash Lift Handle

    Grid Profiles

    Removable Interior Grid

    Removable Interior Grid

    Width: 5/8", 7/8", 1-1/8"

    Removable Interior Grid
    Simulated Divided Lite (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Custom
    Diamond
    Prairie

    Decorative Glass

    Colored

    Colored



    Colored
    Frosted
    Textured
    Translucent

    Trims

    1" Box Sill Nosing

    1" Box Sill Nosing



    1" Box Sill Nosing

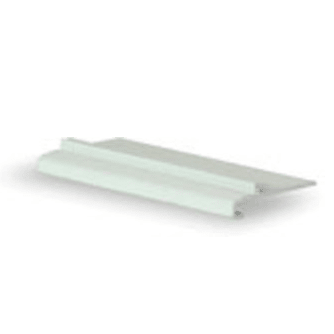

    1/4" Sill Nosing
    2" Brickmould
    4" Brickmould
    4" Flat Casing
    7/8" Sill Nosing
    Bull Nosing
    Colonial
    F-131
    GR-499
    Princeton
    Ranch
    RB3-Howell
    WM-356
    WP-442
    WP-444
    WP-445

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    LC (Light Commercial)
    Grade
    50
    Test Size
    37-3/8" x 80-1/2"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    50
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    LowE Clear IG Air Double Pane, Low-E Coating - 0.35 0.31 0.52 -
    LowE Clear IG Argon Argon, Double Pane, Low-E Coating - 0.32 0.3 0.52 -
    LowE-180 Clear IG Argon Argon, Double Pane, Low-E Coating - 0.32 0.5 0.57 -
    LowE-272 Clear IG Air Double Pane, Low-E Coating - 0.31 0.3 0.51 -
    LowE-272 Clear IG Argon Argon, Double Pane, Low-E Coating North Central 0.28 0.3 0.3 -
    LowE-366 Clear IG Air Double Pane, Low-E Coating Southern 0.35 0.21 0.47 -
    LowE-366 Clear IG Argon Argon, Double Pane, Low-E Coating Southern 0.31 0.2 0.47 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.28 0.35

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.2 0.5

    Lincoln Windows

    1400 W. Taylor P. O. Box 375 Merrill, WI 54452-0375

    (800) 967-2461

    www.lincolnwindows.com
