Sierra Pacific Windows

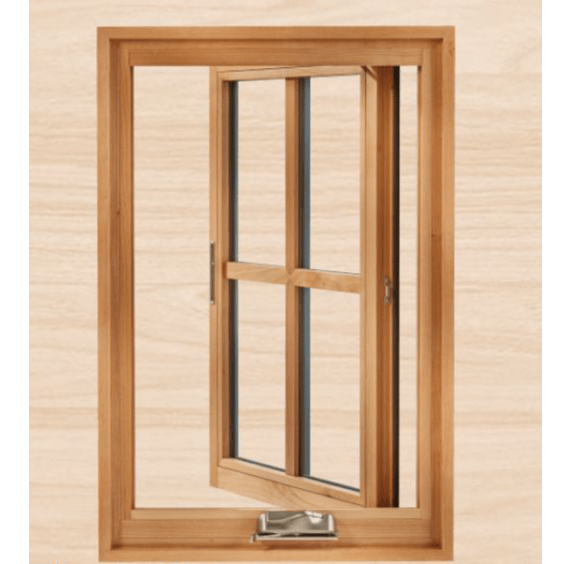

    Aspen Casement Window

    $$

    Price categories are relative and based on product material

    Casement

    Window Type

    Aluminum-Clad Wood

    Material

    Commercial, Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.12.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Aspen
    Aspen
    Aspen
    Aspen
    Aspen
    Aspen

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Known for its architecturally sculpted lines and hidden locking system, the Aspen Collection has been re-engineered for even better structural performance and r

    Product Description

    Known for its architecturally sculpted lines and hidden locking system, the Aspen Collection has been re-engineered for even better structural performance and resistance to air and water intrusion.

    Dimensions

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 16-1/2" 42" 18" 96" 4-9/16", 5-11/16"

    Finish Colors

    All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

    • Alder
    • Aqua Mist
    • Bahama Brown
    • Battleship Grey
    • Black
    • Bronze
    • Cherry
    • Clear
    • Deep Plum
    • Esspresso
    • Forest Green
    • Hartford Green
    • Harvest Cranberry
    • ICI Brown
    • Linen
    • Mahogany
    • Maple
    • Morning Dove Grey
    • Pine
    • Red Oak
    • Sage Green
    • Sandstone
    • Seawolf
    • Slate Blue
    • Tan
    • Terra Cota
    • Toffee
    • Vertical Grain Douglas Fir
    • Walnut
    • White
    • White Oak

    All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

    Hardware Finishes

    All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

    • Antique Brass
    • Bright Bronze
    • Bright Chrome
    • Bronze
    • Brushed Chrome
    • Matte Black
    • Oil Rubbed Bronze
    • Satin Nickel
    • White

    All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

    Hardware

    Folding Handle with a Nesting Cover

    Folding Handle with a Nesting Cover



    Folding Handle with a Nesting Cover
    Roto Operator
    Single Operating Lock Lever

    Grid Profiles

    There are three types of grids - Contemporary, Putty and Traditional

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 11/16", 1"

    Grilles Between Glass (GBG)
    Simulated Divided Lite with Spacer Bars (SDL)

    There are three types of grids - Contemporary, Putty and Traditional

    Grid Patterns

    There are three types of grids - Contemporary, Putty and Traditional

    Colonial

    Colonial



    Colonial
    Custom
    Prairie

    There are three types of grids - Contemporary, Putty and Traditional

    Decorative Glass

    Colored

    Colored



    Colored
    Frosted
    Textured
    Translucent

    Trims

    Flat 1-5/8"

    Flat 1-5/8"



    Flat 1-5/8"
    Flat 3-5/8"
    Montana 1-9/16"
    Ovalo
    Standard Brickmould 1-5/8"

    Composition

    Bay and Bow

    Bay and Bow



    Bay and Bow
    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    Class
    CW (Commercial)
    Grade
    65
    Test Size
    -
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    65
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    LE272/LE180/LEi89 Argon, Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.16 0.24 0.41 -
    LE272/LE180/LEi89 Low-E Coating, Triple Pane North Central, Northern, South Central, Southern 0.18 0.24 0.41 -
    Low-E 272 Argon, Double Pane, Low-E Coating North Central, Northern 0.26 0.28 0.48 -
    Low-E 272 Clear Double Pane, Low-E Coating North Central 0.29 0.28 0.48 -
    Low-E 366 Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.25 0.19 0.43 -
    Low-E 366 Double Pane, Low-E Coating North Central, South Central, Southern 0.28 0.19 0.43 -

    Custom Glass Available

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.16 0.29

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.19 0.28

    Sierra Pacific Windows

    P. O. Box 8489 11605 Reading Rd. Red Bluff, CA 96080

    (800) 824-7744

    www.sierrapacificwindows.com
