Windsor Windows & Doors

    Pinnacle Clad Double Hung Window

    $

    Price categories are relative and based on product material

    Double Hung

    Window Type

    Aluminum-Clad Wood

    Material

    Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 03.04.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Pinnacle Clad
    Pinnacle Clad
    Pinnacle Clad
    Pinnacle Clad

    Design Options

    All of our information is sourced from manufacturer data.

    Product Type Image

    Series Description

    Our top-of-the-line Pinnacle wood clad windows and doors offer a large selection of styles and shapes. The exterior comes in a low maintenance extruded aluminum

    Product Description

    The sash on the double hung easily tilts in and removes for easy cleaning. Our unique locking shoe balance system also allows you to effortlessly replace or remove individual sashes.

    Dimensions

    Other restrictions may apply.

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 17-3/8" 47-3/8" 32-3/4" 96-3/4" 5-15/16"

    Other restrictions may apply.

    Finish Colors

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    • ANTIQUE BARREL
    • ANTIQUE BRONZE
    • APPALACHIAN BROWN
    • BEIGE
    • BLACK
    • BOYSENBERRY
    • BRICK RED
    • BRONZE
    • BURNT PUMPKIN
    • BURNT SUN
    • CAMARILLO GREEN
    • CHARCOAL GRAY
    • CHESTNUT
    • CINNAMON
    • CLAY
    • CLEAR
    • CLEAR SELECT PINE
    • COASTAL TAN
    • COPPER
    • DARK BRONZE
    • DESERT DUST
    • DIJON
    • DOUGLAS FIR
    • DOVE GRAY
    • ESPRESSO
    • FRENCH VANILLA
    • GRAY
    • HUNTER GREEN
    • INTENSIVE
    • IVORY
    • LINEN
    • MATTE BLACK
    • MATTE BRONZE
    • MATTE CHARCOAL GRAY
    • MATTE DESERT DUST
    • MATTE SABLE
    • MATTE SLATE GRAY
    • MATTE TAN
    • MIDNIGHT BLUE
    • MILITARY BLUE
    • NATURAL ALDER
    • PATINA GREEN
    • PERFECT BROWN
    • PRIMED
    • PROVINCIAL
    • PUEBLO TAN
    • PUTTY
    • RED RIVER ROUGE
    • REDWOOD
    • SABLE
    • SAGE BROWN
    • SAGE GREEN
    • SANDSTONE
    • SIERRA TAN
    • SLATE GRAY
    • STORMY MONDAY
    • SUNFLOWER
    • SUNLIGHT
    • TAN
    • TEA WITH MILK
    • TEXTURED BLACK
    • WALNUT
    • WHITE

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    Hardware Finishes

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    • Black
    • Bright Brass
    • Bronze
    • Champagne
    • Faux Bronze
    • Oil Rubbed Bronze
    • Satin Nickel
    • White

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    Hardware

    Available in 8 finishes

    Latch

    Latch



    Latch

    Available in 8 finishes

    Grid Profiles

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 3/4", 13/16", 7/8", 1", 1-1/4", 2"

    Grilles Between Glass (GBG)
    Simulated Divided Lite with Spacer Bars (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Custom
    Diamond
    Prairie

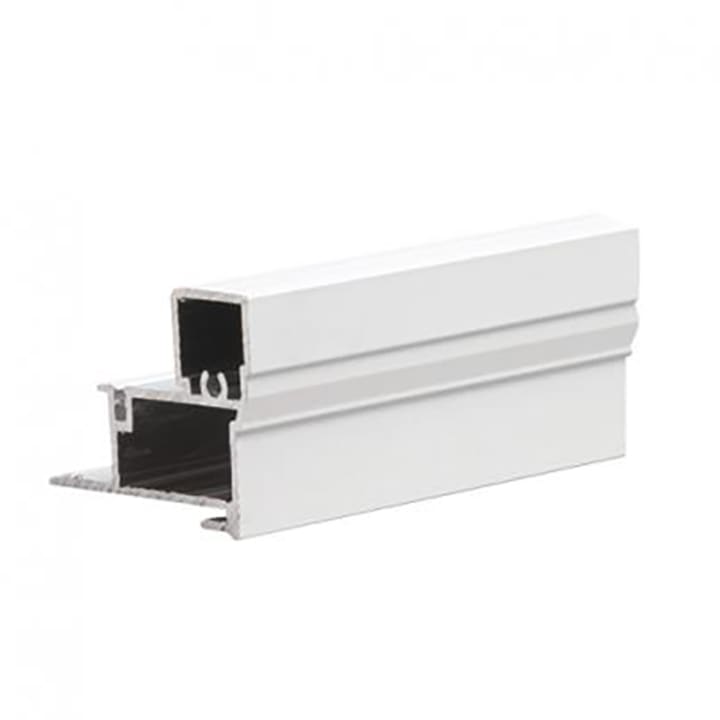

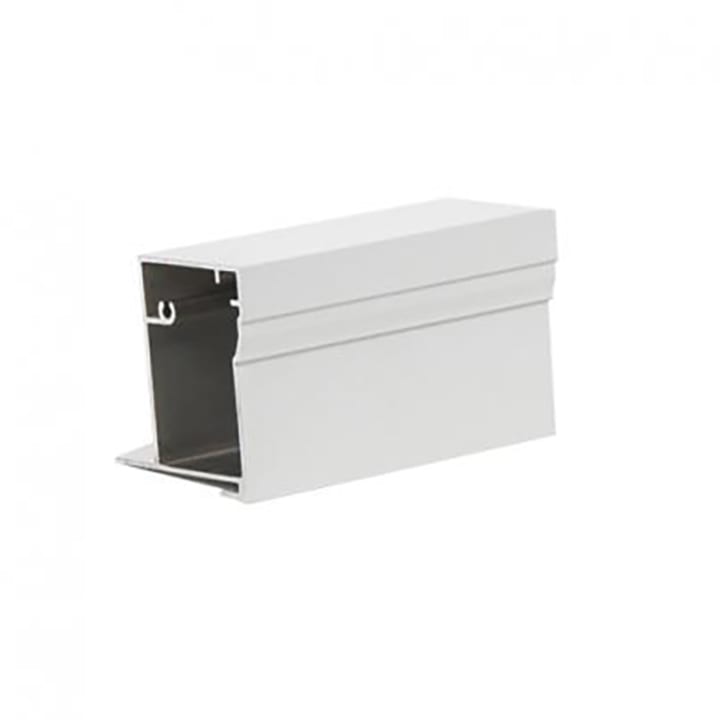

    Trims

    1-1/4" Subsill

    1-1/4" Subsill



    1-1/4" Subsill
    2-1/4" Subsill
    3-1/2" Flat
    Contemporary Flush Fin (Casement/awning with 3-1/4” frame only)
    RB03
    Traditional Flush Fin (Casement/awning with 3-1/4” frame only)
    Williamsburg
    WM 180 Brickmould
    WM327
    WM351
    WM356
    WM361
    WM366
    WM412
    WM433
    WM444
    WM445
    WM473

    Composition

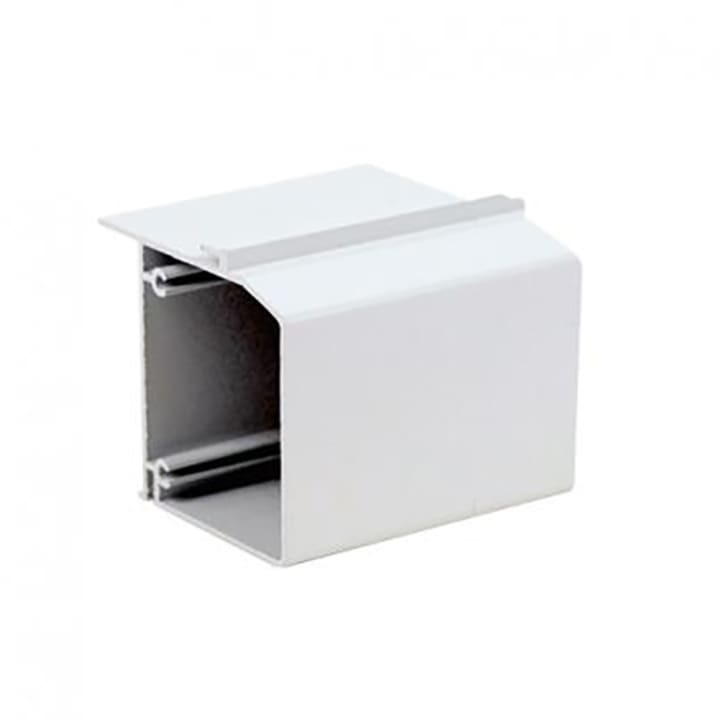

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

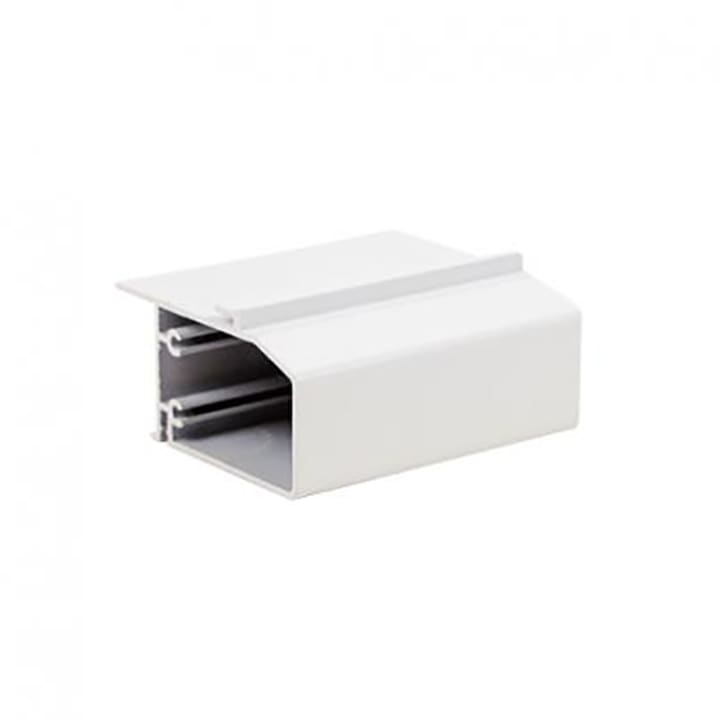

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    LC-PG35 to LC-PG50

    Class
    LC (Light Commercial)
    Grade
    50
    Test Size
    -
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    50
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    LC-PG35 to LC-PG50

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    Dual LoE 366/i89 Air Double Pane, Low-E Coating North Central, South Central, Southern 0.29 0.2 0.45 -
    Dual LoE 366/i89 Argon Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.27 0.19 0.45 -
    Dual LoE HS 180/i89 Air Double Pane, Low-E Coating Northern 0.3 0.44 0.55 -
    Dual LoE HS 180/i89 Argon Argon, Double Pane, Low-E Coating - 0.31 0.46 0.56 -
    LoE 180 Air Double Pane, Low-E Coating - 0.35 0.46 0.56 -
    LoE 180 Argon Argon, Double Pane, Low-E Coating - 0.31 0.46 0.56 -
    LoE 240 Air Double Pane, Low-E Coating Southern 0.34 0.19 0.28 -
    LoE 240 Argon Argon, Double Pane, Low-E Coating Southern 0.31 0.18 0.28 -
    LoE 272 Air Double Pane, Low-E Coating - 0.34 0.3 0.51 -
    LoE 272 Argon Argon, Double Pane, Low-E Coating - 0.31 0.3 0.51 -
    LoE 366 Air Double Pane, Low-E Coating Southern 0.33 0.2 0.46 -
    LoE 366 Argon Argon, Double Pane, Low-E Coating North Central, South Central, Southern 0.3 0.2 0.46 -

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.27 0.35

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.18 0.46

    Values given are for 3mm glass. Glass thickness and thermal performance values differ with size and grille options. Other options may be available upon request.
