    Pinnacle Select Awning Window

    $

    Price categories are relative and based on product material

    Awning

    Window Type

    Aluminum-Clad Wood

    Material

    Replacement, Residential

    Building Sector

    Available in All of US, Canada

    Made in USA

    Energy Star

    Gold

    Updated: 04.14.2022

    Rep Image

    Got Questions?

    Acelab will connect you to a rep that will help you take the next step with just a simple click.

    Pinnacle Select
    Pinnacle Select
    Pinnacle Select
    Pinnacle Select
    Pinnacle Select
    Pinnacle Select
    Pinnacle Select

    Design Options

    All of our information is sourced from manufacturer data.

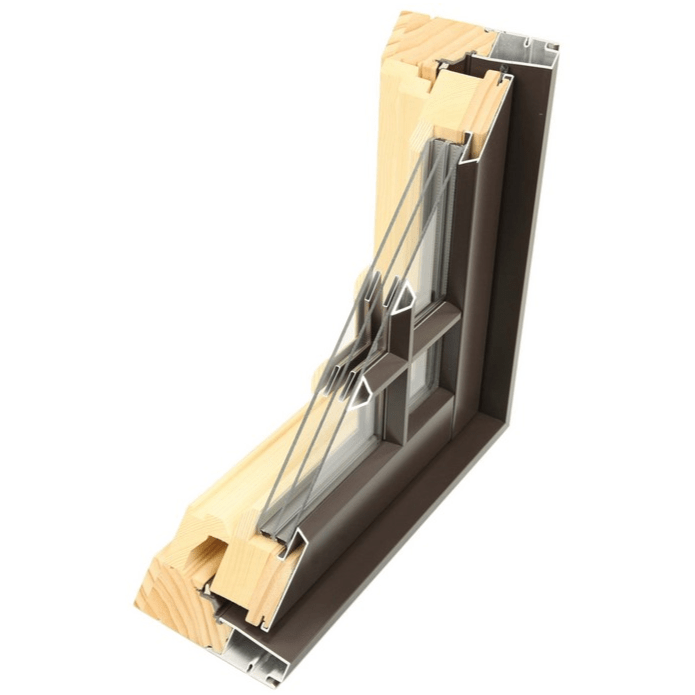

    Product Type Image

    Series Description

    Pinnacle Select is a stunning collection of products constructed from enhanced components for unsurpassed performance.

    Product Description

    Choose from push-out convenience or traditional crank operation with our Pinnacle Select awning windows. Designed with a thick sash to add beauty and increase insulating value.

    Dimensions

    Max - 25 Sq Ft

    Type Min Width Max Width Min Height Max Height Thickness
    Frame 18" 72" 18" 72" 5-15/16"

    Max - 25 Sq Ft

    Finish Colors

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    • ANTIQUE BARREL
    • ANTIQUE BRONZE
    • APPALACHIAN BROWN
    • BEIGE
    • BLACK
    • BOYSENBERRY
    • BRICK RED
    • BRONZE
    • BURNT PUMPKIN
    • BURNT SUN
    • CAMARILLO GREEN
    • CHARCOAL GRAY
    • CHESTNUT
    • CINNAMON
    • CLAY
    • CLEAR
    • CLEAR SELECT PINE
    • COASTAL TAN
    • COPPER
    • DARK BRONZE
    • DESERT DUST
    • DIJON
    • DOUGLAS FIR
    • DOVE GRAY
    • ESPRESSO
    • FRENCH VANILLA
    • GRAY
    • HUNTER GREEN
    • INTENSIVE
    • IVORY
    • LINEN
    • MATTE BLACK
    • MATTE BRONZE
    • MATTE CHARCOAL GRAY
    • MATTE DESERT DUST
    • MATTE SABLE
    • MATTE SLATE GRAY
    • MATTE TAN
    • MIDNIGHT BLUE
    • MILITARY BLUE
    • NATURAL ALDER
    • PATINA GREEN
    • PERFECT BROWN
    • PRIMED
    • PROVINCIAL
    • PUEBLO TAN
    • PUTTY
    • RED RIVER ROUGE
    • REDWOOD
    • SABLE
    • SAGE BROWN
    • SAGE GREEN
    • SANDSTONE
    • SIERRA TAN
    • SLATE GRAY
    • STORMY MONDAY
    • SUNFLOWER
    • SUNLIGHT
    • TAN
    • TEA WITH MILK
    • TEXTURED BLACK
    • WALNUT
    • WHITE

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    Hardware Finishes

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    • Black
    • Bright Brass
    • Bronze
    • Champagne
    • Faux Bronze
    • Oil Rubbed Bronze
    • Satin Nickel
    • White

    Windsor’s in-house powder paint application can help you make a statement with your windows and doors. Choose from over 50 shades in our standard and feature color palettes, or make it truly unique with custom color matching or our matte finish colors. All paints are protected with the highly durable 2604 finish, or you can upgrade to 2605 for even stronger defense against the elements.

    Hardware

    Available in 8 finishes

    Contemporary Crank Operator

    Contemporary Crank Operator



    Contemporary Crank Operator
    Push-Out Lever

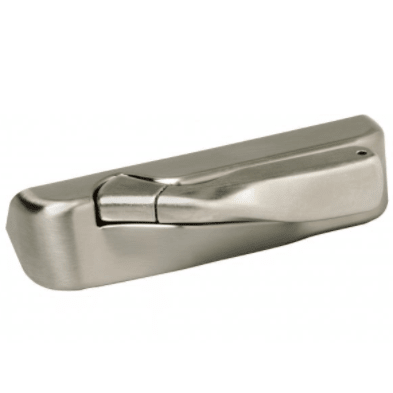

    Traditional Crank Operator

    Available in 8 finishes

    Grid Profiles

    Grilles Between Glass (GBG)

    Grilles Between Glass (GBG)

    Width: 5/8", 3/4", 13/16", 1"

    Grilles Between Glass (GBG)
    Simulated Divided Lite with Spacer Bars (SDL)

    Grid Patterns

    Colonial

    Colonial



    Colonial
    Custom
    Diamond
    Prairie

    Trims

    1-1/4"

    1-1/4"



    1-1/4"
    2-1/4"
    3-1/2" FLAT
    3/8"
    RB03
    WILLIAMSBURG
    WM 180
    WM327
    WM351
    WM356
    WM361
    WM366
    WM412
    WM433
    WM444
    WM445
    WM473

    Composition

    Common Jambs

    Common Jambs



    Common Jambs

    Add-Ons

    Extension Jambs

    Extension Jambs



    Extension Jambs
    Insect Screens
    Nail Fins

    Performance Data

    Performance Class & Grade

    CW-PG70-AP (Push-Out 48x36) LC-PG50-AP (Crank-Out 60x60) LC-PG40-AP (Push-Out 60x60)

    Class
    CW (Commercial)
    Grade
    70
    Test Size
    48" x 36"
    Class Grade (psf) Color gradient is representative of strength Minimum Test Size
    R (Residential)
    10 20 30 40 50 60 70 80 90 100
    -
    LC (Light Commercial)
    10 20 30 40 50 60 70 80 90 100
    -
    CW (Commercial)
    70
    10 20 30 40 50 60 70 80 90 100
    -
    AW (Architectural)
    10 20 30 40 50 60 70 80 90 100
    -

    CW-PG70-AP (Push-Out 48x36) LC-PG50-AP (Crank-Out 60x60) LC-PG40-AP (Push-Out 60x60)

    Glazing

    Type Features Energy Star U-Factor Solar Heat Coefficient Visible Transmittance Fire Rating
    Dual LoE 366/i89 Air Double Pane, Low-E Coating North Central, South Central, Southern 0.29 0.18 0.41 -
    Dual LoE 366/i89 Argon Argon, Double Pane, Low-E Coating North Central, Northern, South Central, Southern 0.27 0.18 0.41 -
    Dual LoE HS 180/i89 Air Double Pane, Low-E Coating - 0.3 0.41 0.5 -
    Dual LoE HS 180/i89 Argon Argon, Double Pane, Low-E Coating Northern 0.28 0.41 0.5 -
    LoE 180 Air Double Pane, Low-E Coating - 0.34 0.42 0.51 -
    LoE 180 Argon Argon, Double Pane, Low-E Coating - 0.31 0.42 0.51 -
    LoE 240 Air Double Pane, Low-E Coating Southern 0.34 0.17 0.26 -
    LoE 240 Argon Argon, Double Pane, Low-E Coating Southern 0.31 0.17 0.26 -
    LoE 272 Air Double Pane, Low-E Coating - 0.33 0.28 0.46 -
    LoE 272 Argon Argon, Double Pane, Low-E Coating - 0.31 0.27 0.46 -
    LoE 366 Air Double Pane, Low-E Coating Southern 0.33 0.19 0.42 -
    LoE 366 Argon Argon, Double Pane, Low-E Coating North Central, South Central, Southern 0.3 0.18 0.42 -

    U-Factor

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.27 0.34

    Solar Heat Gain Coefficient

    0.1
    0.2
    0.3
    0.4
    0.5
    0.6
    0.7
    0.8
    0.9
    0.17 0.42

    Values given are for 3mm glass. Glass thickness and thermal performance values differ with size and grille options. Other options may be available upon request.
