Durasheath

Rmax

Durasheath

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Crawl-Space Ceiling, Roof, Sloped Ceiling Crawl-Space Ceiling, Roof, Sloped Ceiling

In Cavity Wall, Unfinished Floor In Cavity Wall, Unfinished Floor

Design Options

Product Description

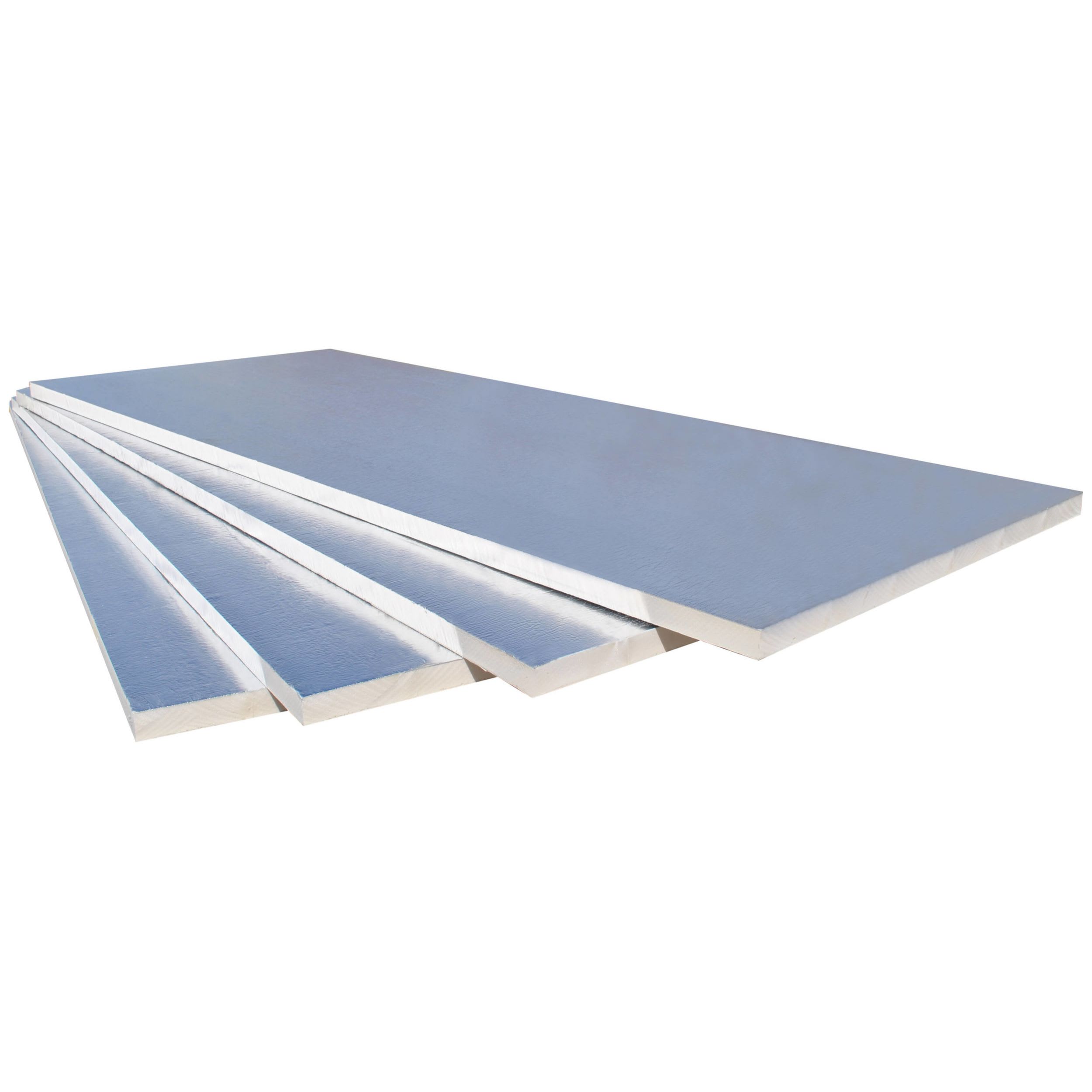

Rmax Durasheath is an energy-efficient thermal insulation board composed of a closed-cell polyisocyanurate (polyiso) foam core bonded to inorganic polymer coated glass fiber mat facers on each side.
Durasheath offers energy performance and superior durability with its non-metallic, inorganic polymer coated glass fiber mat facers. It is intended for use in exterior walls with stucco veneer, concrete sandwich panels and many other building envelope applications, including those where an impermeable foil faced product is not desired.

Insulation

Width

Standard Sizes: 4' 0"

Height

Standard Sizes: 8' 0"

Thickness

Standard Sizes: 0-1/2", 0-3/4", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 3", 3-1/4", 3-1/2", 4", 4-1/2"

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

6

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

minutes

60

Flame Spread

As defined by the ASTM E84 testing standard

75

Linear Shrinkage

The percent that a product shrinks, usually in response to heat.

%

2

Product Density

lbs / ft^3

2

Compressive Strength

psi

20

Smoke Development

As defined by the ASTM E84 testing standard

450

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

1.5

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

3, 4.5, 6, 7.5, 9.1, 9.7, 12.1, 13.4, 15.3, 18.5, 19.8, 21.8, 25, 28.3
