Entrance Doors

Kolbe Windows & Doors

Entrance Doors

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Swinging (Hinged) Swinging (Hinged)

Stile & Rail Stile & Rail

Solid Wood Core Solid Wood Core

Stile & Rail Swinging Door Stile & Rail Swinging Door

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

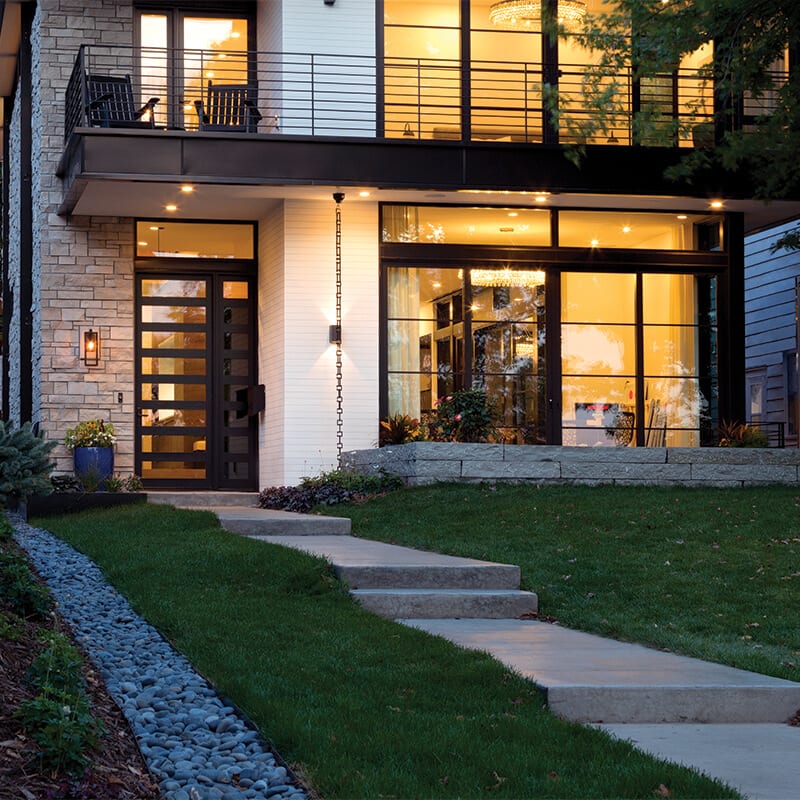

VistaLuxe Collection swinging doors are designed with slim stiles and rails to maximize viewing areas and invite the light into your space. Combine with other VistaLuxe products into a unique design while preserving symmetry and sightlines.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.
VistaLuxe products are available with exterior trim pieces that are sold as kits to be applied on the job site after installation.

Single Door Frame

Width

Min: 2' 2" Max: 3' 2"

Height

Min: 6' 10-1/8" Max: 10' 2-1/8"

Thickness

Standard Sizes: 4-9/16", 6-9/16"

Double Door Frame

Width

Min: 4' 2-3/4" Max: 6' 2-3/4"

Height

Min: 6' 10-1/8" Max: 10' 2-1/8"

Thickness

Standard Sizes: 4-9/16", 6-9/16"

Leaf

Width

Height

Standard Sizes: 2' 0", 2' 6", 2' 8", 3' 0", 6' 8", 7' 0", 8' 0", 9' 0", 10' 0"

Thickness

Standard Sizes: 1-3/4", 2-1/8"

Door Hardware

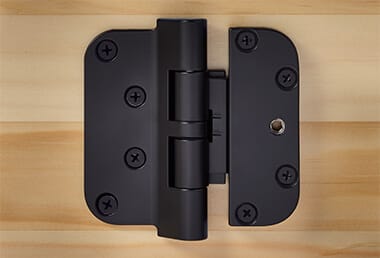

Adjustable Hinges

Adjustable Hinges



Frame Finish

Abalone

Abalone

Exterior

Leaf Finish

Abalone

Abalone

Exterior

Pannings, Casings or Trims

1-1/8" Flat Casing

1-1/8" Flat Casing

Exterior

Privacy Glass Option

Aqualite

Aqualite



Manufacturer Design Notes



Product tested - Single door

Performance Data

Performance Grade

Units: (unitless)

65

Certifications

ADA Compliance

Yes

NFRC Label

Available

OITC Rating

25-30

OITC Rating

30-35

STC Rating

30-35

STC Rating

35-40

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Kolbe Windows & Doors, Entrance Doors

Option Features Condensation Resistance SHGc (Full Lite) U-Value (Full Lite) Visible Transmittance (VT)
LoE-180 (Air) Glass Type 52 0.48 0.36 0.55
LoE-180 (Argon) Glass Type 56 0.48 0.33 0.55
LoE-270 (Air) Glass Type 53 0.26 0.35 0.48
LoE-270 (Argon) Glass Type 56 0.26 0.32 0.48
LoE-340 (Air) Glass Type 53 0.13 0.35 0.27

Manufacturer Performance Notes

Product tested - Single door
