WallGUARD

T. Clear Corp.

WallGUARD

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

XPS (Extruded Polystyrene) XPS (Extruded Polystyrene)

Sloped Ceiling, Wall Sloped Ceiling, Wall

Design Options

Product Description

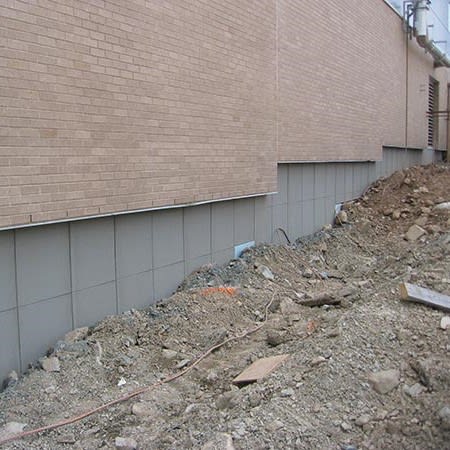

WallGUARD Concrete Faced Insulated Perimeter Wall Panels are prefinished, one step exterior insulating panels intended for use below and above grade in new or retrofit residential, commercial, industrial, and institutional applications. It protects and insulates the exposed area of the foundations, slab edges, rim joists, and other perimeter wall areas.
It consists of XPS insulation with a factor applied 5/16" thick brushed latex modified, concrete facing.

Insulation

Width

Standard Sizes: 2' 0"

Height

Standard Sizes: 4' 0"

Thickness

Standard Sizes: 2", 3"

Manufacturer Design Notes

Not suited for irregularly shaped buildings, or masonry foundations with many irregularities.

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

5

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

Smoke Development

As defined by the ASTM E84 testing standard

NRC Value

The Noise Reduction Coefficient values of this product

Flame Spread

As defined by the ASTM E84 testing standard

Fire Resistance

Amount of time the product can withstand fire

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

10, 15

Product Weight Per Area

Varies if the product comes in multiple thicknesses.

lbs / ft^2

4.5

Compressive Strength

psi

40
