Ultimate Swinging French Door

Marvin Windows and Doors

Ultimate Swinging French Door

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Swinging (Hinged) Swinging (Hinged)

Stile & Rail Stile & Rail

Solid Wood Core Solid Wood Core

Stile & Rail Swinging Door Stile & Rail Swinging Door

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Aluminum-Clad Wood Aluminum-Clad Wood

Solid Wood Solid Wood

Full Door System Full Door System

Exterior Exterior

Design Options

Product Description

The Marvin Ultimate Swinging French door combines a traditional French style with expert craftsmanship. And the durable Ultrex® fiberglass sill will stand up to even the harshest climates. To maximize views and access to the outdoors, select from inswing or outswing operation in configurations up to 14 feet wide.
For projects that call for the natural or historic beauty of wood exteriors, we offer a selection of high-quality exterior wood options, including Pine, Vertical Grain Douglas Fir, Mahogany and Primed Pine.
All finish samples shown are for visualization purposes only and are not intended to be an accurate representation of the actual finish. For exact color, please contact manufacturer directly for finish samples.

Single Door Frame

Width

Min: 1' 5-13/16" Max: 3' 8-3/8"

Height

Min: 4' 6-15/16" Max: 9' 5-1/2"

Thickness

Standard Sizes: 4-9/16"

Double Door Frame

Width

Min: 2' 9-3/8" Max: 7' 2-1/2"

Height

Min: 4' 6-15/16" Max: 9' 5-1/2"

Thickness

Standard Sizes: 4-9/16"

Leaf

Width

Height

Thickness

Standard Sizes: 1-3/4", 2-1/4"

Arch Door Top

Arch Door Top

Arch Door Top



Door Hardware

Contemporary Swinging Handle

Contemporary Swinging Handle



Frame Finish

Bahama Brown

Bahama Brown

Exterior

Leaf Finish

Bahama Brown

Bahama Brown

Exterior

Pannings, Casings or Trims

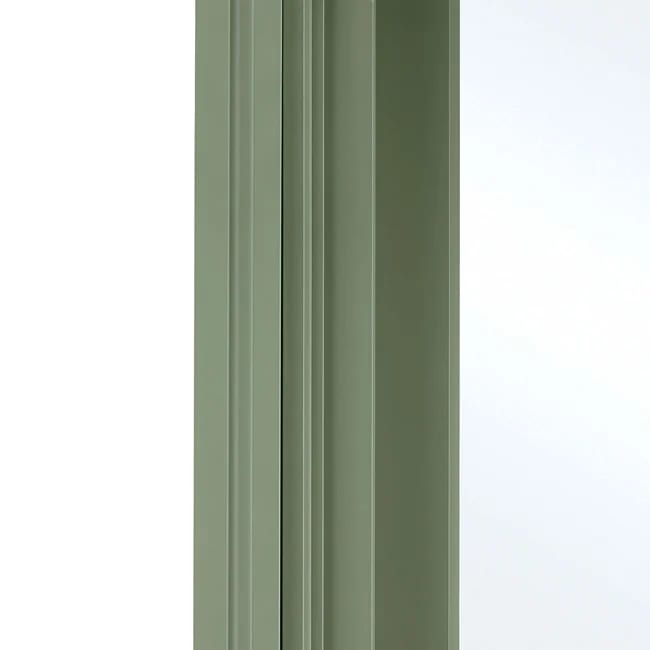

Brick Mould

Brick Mould

Exterior

Privacy Glass Option

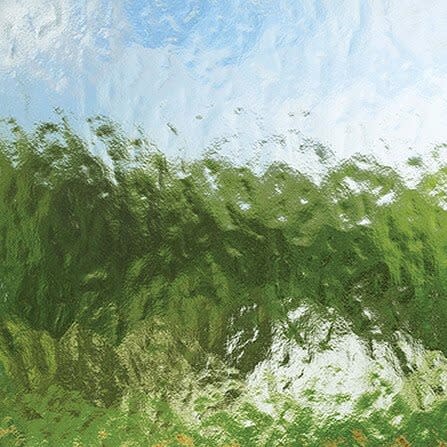

Aqualite

Aqualite



Manufacturer Design Notes



Product tested - Ultimate Outswing French Door (XX)

Performance Data

Performance Grade

Units: (unitless)

50

Certifications

AAMA

Gold

Energy Star

Southern

Energy Star

Northern

Energy Star

South-Central

Energy Star

North-Central

NFRC Label

Available

OITC Rating

25-30

OITC Rating

30-35

STC Rating

35-40

STC Rating

40-50

STC Rating

30-35

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Marvin Windows and Doors, Ultimate Swinging French Door

Option Features Glass Thickness SHGc (Full Lite) U-Value (Full Lite) Visible Transmittance (VT)
clr/argon/LoE 180 Glass Type 0.75 0.65 0.35 0.77
LoE 272/argon/clr Glass Type 0.75 0.45 0.28 0.72
LoE 366/argon /i89 Glass Type 0.75 0.3 0.26 0.63

Manufacturer Performance Notes

Product tested - Ultimate Outswing French Door (XX)

Marvin Windows and Doors

801 State Ave. N.E. P. O. Box 100 Warroad, Minnesota, USA 56763

(888) 537-7828

https://www.marvin.com
