Sopraseal Stick VP

Soprema USA

Sopraseal Stick VP

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

WRB (Weather/Water Resistant Barrier) WRB (Weather/Water Resistant Barrier)

Fully Adhering Fully Adhering

Polymer Polymer

Sloped Roof, Wall Sloped Roof, Wall

Concrete, Masonry, Wood Sheathing Concrete, Masonry, Wood Sheathing

Design Options

Product Description

SOPRASEAL Stick VP is a light weight 24mil, self-adhered vapor-permeable water resistive air barrier used in wall construction. SOPRASEAL Stick VP is composed of a tough tri-laminate composite facer coated with a high tack adhesive specially formulated for permeability and protected with a silicone release film.

Sheet Width

Width

Standard Sizes: 3' 1-3/8"

Height

Thickness

Sheet Length

Width

Height

Standard Sizes: 8' 2-3/8"

Thickness

Thickness

Width

Height

Thickness

Standard Sizes: 0"

Manufacturer Design Notes

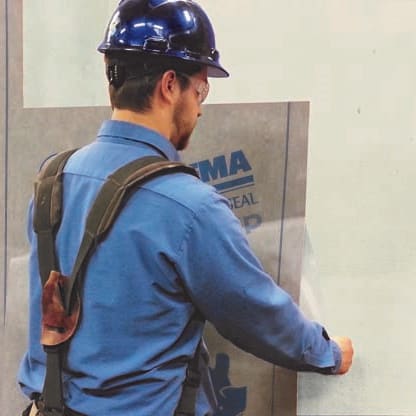

SOPRASEAL Stick VP is installed without the use of a primer as a self-adhered air and vapor mitigating barrier on vertical masonry and concrete walls, as well as exterior gypsum wall board, metal, OSB and exterior grade plywood sheathing.

Performance Data

Roll Tensile Strength

Weight needed to break the roll, per inch of width

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

17

Product Weight Per Area

lb / ft ^ 2

17.5

Minimum Temperature Rating

The lowest temperature that the product has been confirmed to still function at.

°F

-40

Minimum Application Temperature

Minimum temperature that the product can be applied or installed

°F

19

Film Tensile Strength

Pressure required to break the film

psi

950

Dimensional Stability

The percent that a product's dimensions vary due to aging or environmental conditions.

%

0.5

Air Permeance

Rate of airflow through the barrier per square foot at a specified pressure difference

cfm /ft^2 @ 1.57 psf

0.0005
