ECOMAXci FR

Rmax

ECOMAXci FR

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Board Insulation Board Insulation

Foam Board Foam Board

Polyisocyanurate Polyisocyanurate

Crawl-Space Ceiling, Sloped Ceiling Crawl-Space Ceiling, Sloped Ceiling

Behind Masonry or Concrete Wall, Unfinished Floor Behind Masonry or Concrete Wall, Unfinished Floor

Design Options

Product Description

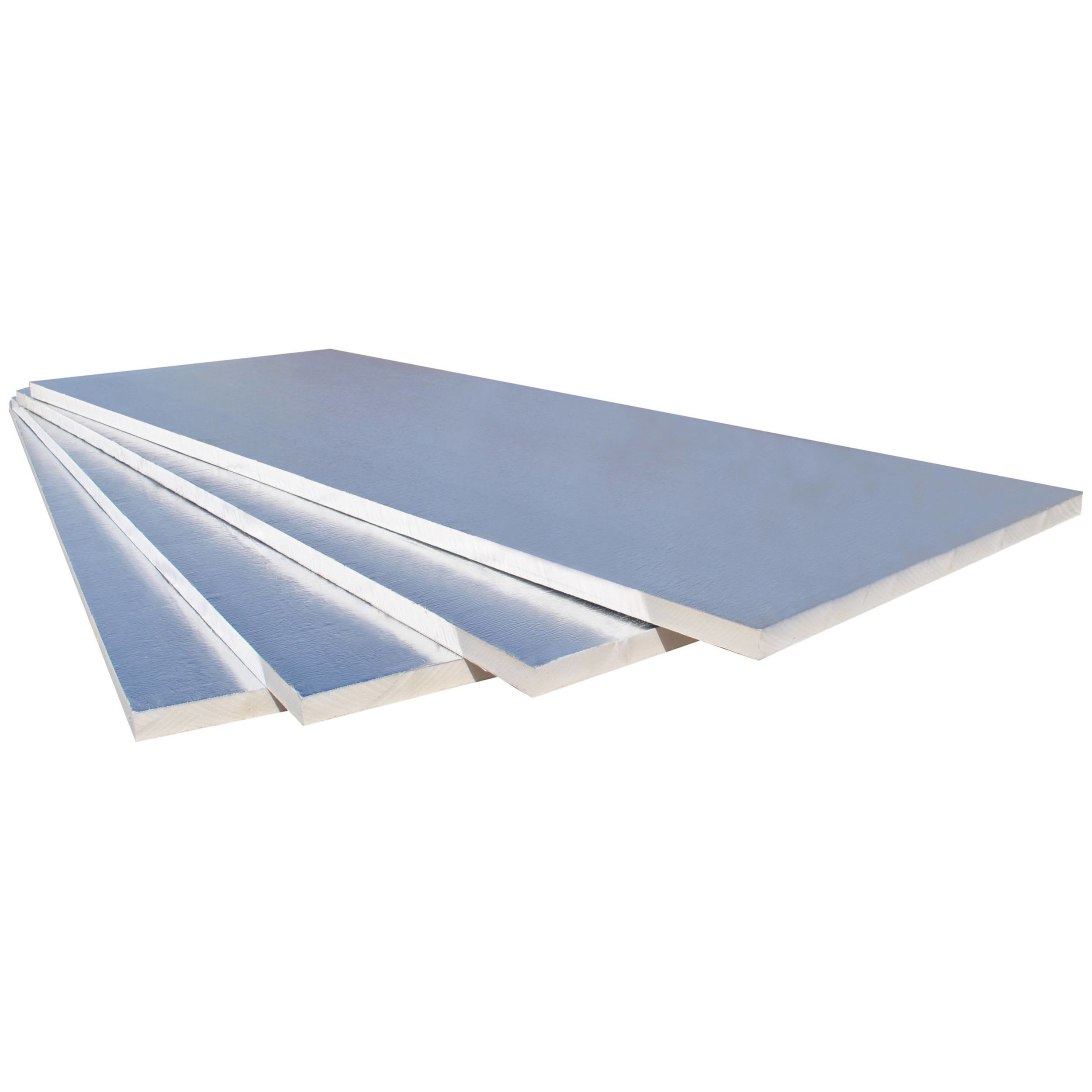

Rmax ECOMAXci FR is an energy-efficient thermal insulation board composed of a closed-cell polyisocyanurate (polyiso) foam core bonded to embossed, glass fiber reinforced aluminum facers on both sides. The exposed side of the board has a heavy embossed 12mil facer with an aluminum reflective surface and clear coating for limited protection against oxidation. The other side is marked in production to ensure proper installation.
The product has exterior walls (Type I-IV): Masonry, steel stud, FRTW stud; farm or storage buildings; pre-engineered metal buildings; parking structures; laminate panels and other similar applications.

Insulation

Width

Height

Thickness

Standard Sizes: 0-1/2", 0-3/4", 1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 3", 3-1/2", 3-3/4", 4", 4-1/2"

Manufacturer Design Notes

Available in compressive strength 25 psi, upon request.

Performance Data

R-Value Per Inch

Measure of the thermal resistance of the product per inch of thickness, imperial units.

°F·ft^2·h / BTU / inch

6.4

NRC Value

The Noise Reduction Coefficient values of this product

Fire Resistance

Amount of time the product can withstand fire

minutes

60

Flame Spread

As defined by the ASTM E84 testing standard

25

Water Vapor Transmission

An imperial perm is defined as 1 grain of water vapor per hour, per square foot, per inch of mercury

perm (imperial)

0.03

Product Density

lbs / ft^3

2

R-Value

Measure of the thermal resistance of the product, imperial units.

°F·ft^2·h / BTU

3.2, 5, 6, 7.8, 9.6, 11.4, 13.1, 13.9, 16.7, 20.3, 23.9, 25.3, 27.4, 31

Compressive Strength

psi

20

Linear Shrinkage

The percent that a product shrinks, usually in response to heat.

%

1

Smoke Development

As defined by the ASTM E84 testing standard

450
